General: The lifting triangle has the same function as a short beam or a spreader. Given working load limits are valid for a maximum  top sling angle of 90°. For top angles between 90°-120° working load limit shall be reduced by 30%. All lifting triangles are supplied with 2 shackles according to table. Working load limit in the centre shackle hole is equal to the working load limit of the shackle according to the table.
Design: Cut sheet metal. Wear plates and spacers for the shackles.


Proof: Batch proof 2 x WLL.



  • Material: Plate of high-strength structural steel.
  • Marking: WLL and CE-marking.
  • Finish: Yellow painted.
  • Note: Other loads and dimensions are available on request.

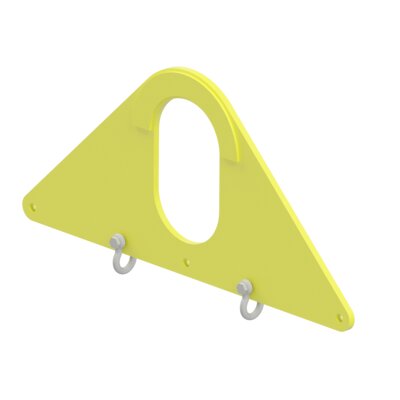

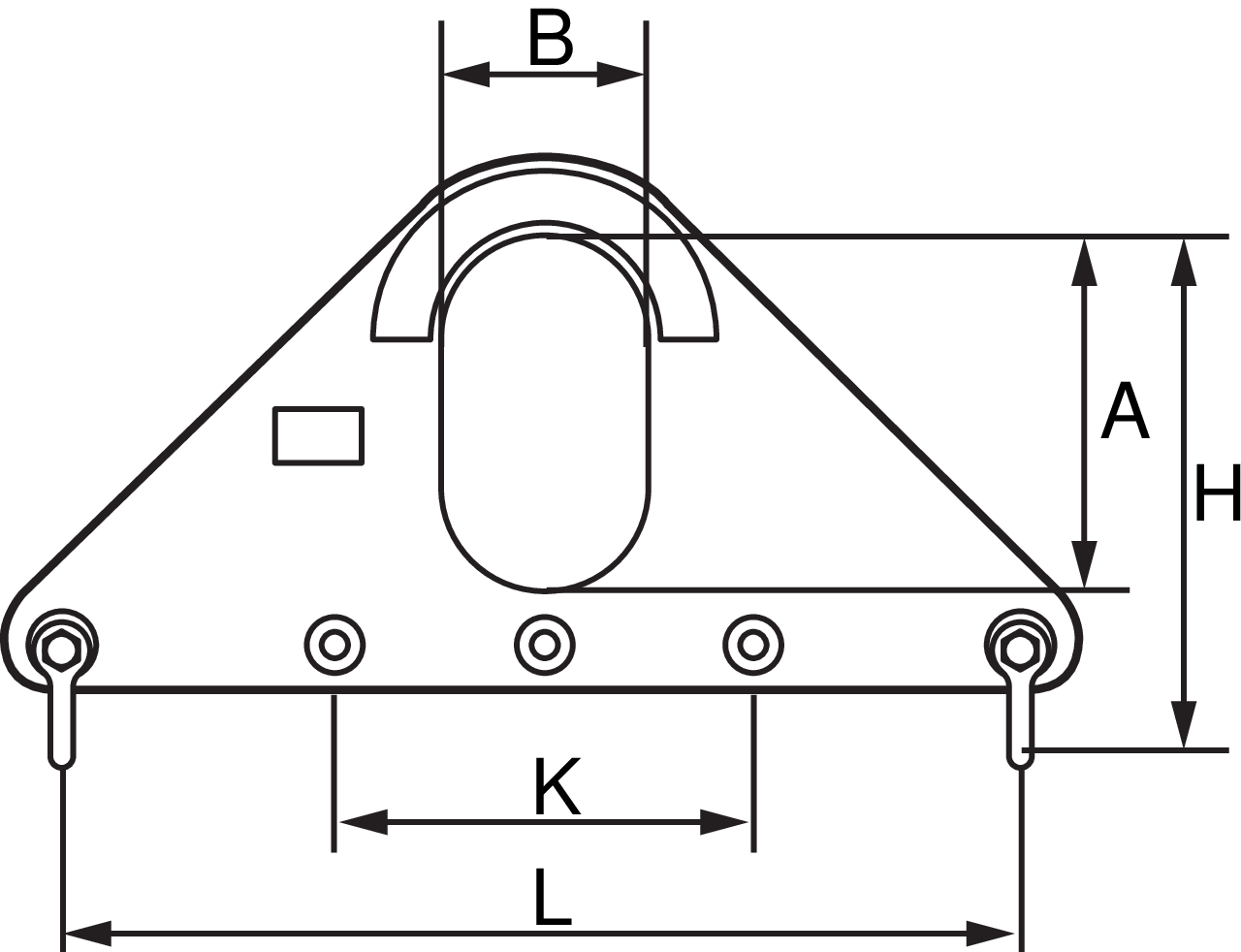

    6676M_e_225mm
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Shackle A
    mm
    B
    mm
    H
    mm
    K
    mm
    L
    mm
    Weight
    kg
    13.406670020.9 2 11,311 250 150 340 290 700 13
    13.406670040.9 4 11,311 250 150 360 290 700 20
    13.406670060.9 6 11,311 250 150 375 290 700 31
    13.406670100.9 10 11,311 300 180 460 360 870 55
    13.406670150.9 15 11,311 300 180 490 360 870 74
    13.406670200.9 20 11,311 300 180 525 360 870 100
