Terrier

General:
Heavy duty clamp for safe lifting and transporting of steel (oil) drums. Single clamp application on empty or filled sealed drums. Filled open drums should be lifted by use of two clamps with a two leg chain sling.

Features:

  • With automatic locking mechanism
  • Lightweight design for easy handling
  • Tough quality heavy duty welded shell body
  • Maintenance-friendly, easy to exchange parts which are available upon request
  • Delivered with certificate.
  • Material: Alloy steel
  • Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
TVK_m2
TVK_m3
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

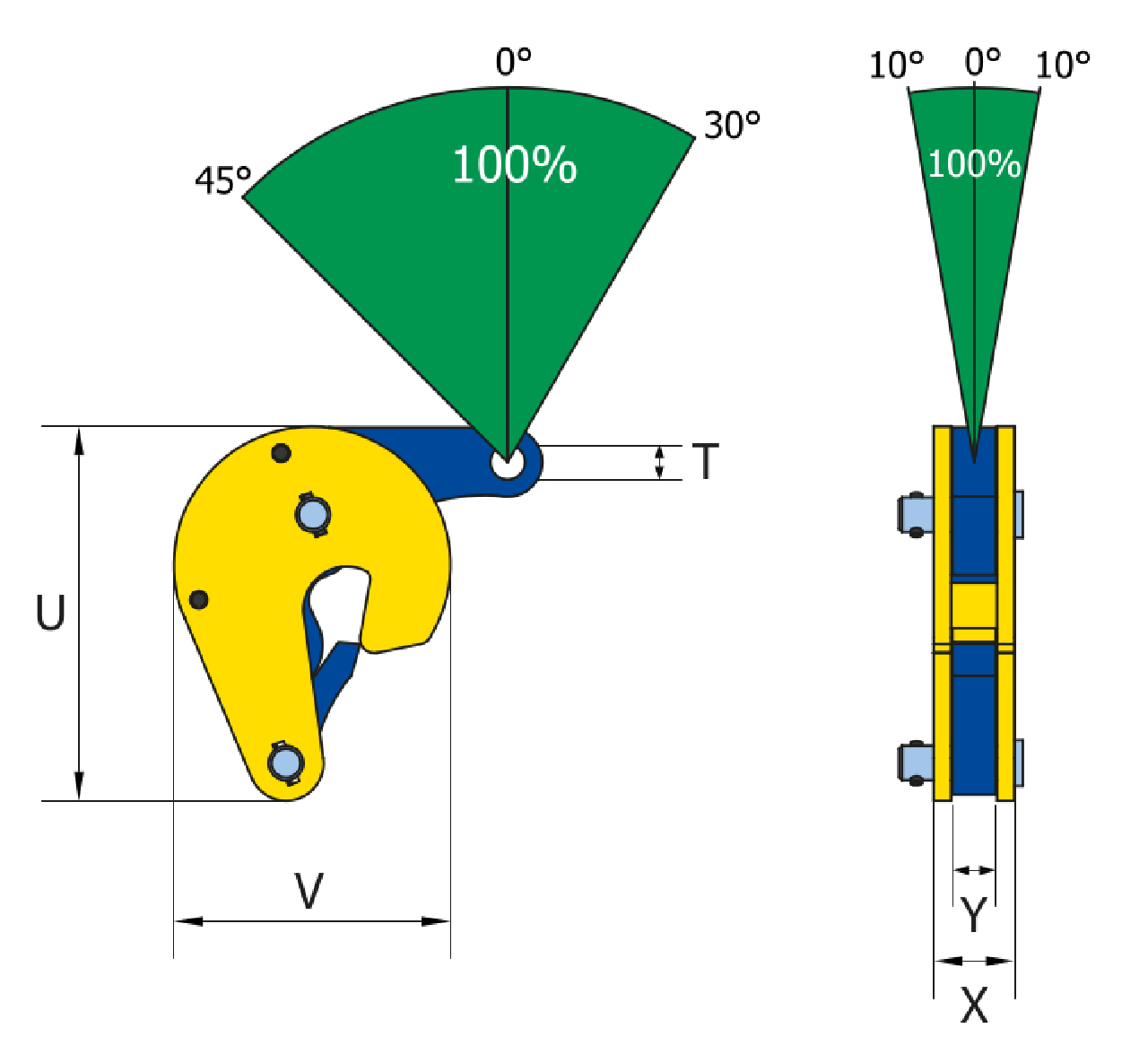

Jaw opening (mm) U (mm) V (mm) T (mm) X (mm) Y (mm) Weight
kg
CAD
16.01828000 TVK 0.5 0-17 121 96 12 28 15 1.3
