• Not for lifting

General: Chain for lashing.
Not to be heat-treated.

Proof: 60% of breaking force.


  • Material: Alloy steel grade 8.
  • Marking: According to standard, One link per m chain is marked with grade.
  • Finish: Zink-platined.
  • Standard: EN 12195-3, EN 818-2
    Kl_black_new_225mm

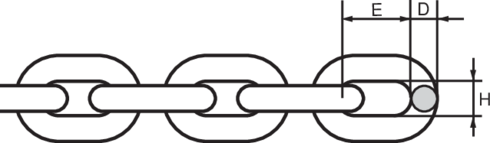

    Short link chain measurements
    Select a row from the table below, then click the add to quote button
    Part Code Code Chain diameter
    mm
    LC
    kN
    LC
    daN
    Breaking force
    kP
    D
    mm
    E
    mm
    H
    mm
    Weight
    kg/m
    03.10KLZE08.8 KLZE-8-8 8 40 4 000 8 198 8 24 10,4 1,4
    03.10KLZE10.8 KLZE-10-8 10 63 6 300 12 848 10 30 13 2,2
    03.10KLZE13.8 KLZE-13-8 13 100 10 000 21 618 13 39 16,9 3,8
    03.10KLZE16.8 KLZE-16-8 16 163 16 300 32 834 16 48 20,8 5,7
    * load lashing capacity (LC).
