Elephant

General: YA Series lever hoists are robust and suitable for lifting, pulling, spanning and clamping in any directions.
A solid and compact design with special rust-resistant coating performs in extreme  environments such as the offshore and mining industries. The gears are completely enclosed and make the hoist highly reliable and durable meaning lower maintenance costs. One-touch change lever further improves work efficiency. Tough black body resists scratches and prevents rust. Waterproof, shock resistant gear and brake cover. The bolted rubber grip ensures safe operation of the lever hoist.

  • Material: Durable all steel construction
  • Marking: According to standard
  • Temperature range: -10°C up to +50°C.
  • Finish: Powder coated finish and plated frame components
  • Standard: EN 13157, EN 818-7
  • Safety factor: 5:1
Spak_svart_new_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Load chain Ø
mm
Hand effort to lift full load
kg

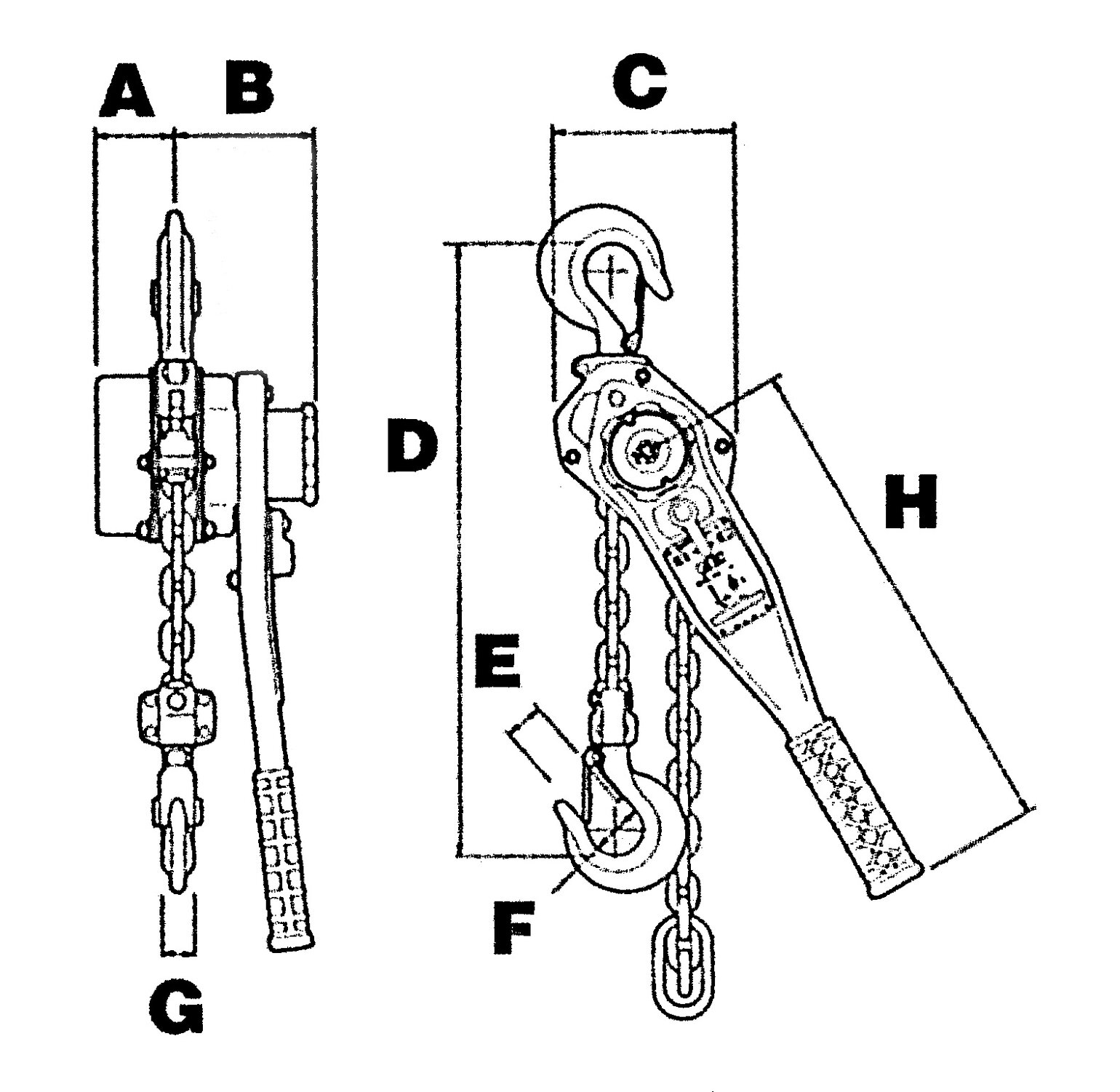

Std. lift m A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg
CAD
16.20YA0025030 YA-25 0.25 4 30 3 21 70 60 235 23 31 - 155 2
16.20YA0050030 YA-50 0.5 4.3 35 3 44 69 92 240 34 36 13 180 6.2
16.20YA0080030 YA-80 0.8 5.6 30 3 53 91 122 290 23 36 15 268 6
16.20YA0100030 YA-100 1 5.6 37 3 53 91 122 312 28 43 16 268 6.2
16.20YA0160030 YA-160 1.6 7.1 36 3 63 99 136 352 29 43 21 310 9.2
16.20YA0320030 YA-320 3.2 9 44 3 82.5 104 180 420 36 53 28 310 15.5
16.20YA0630030 YA-630 6.3 9x2 45 3 82.5 104 235 564 47 70 34 310 26.5
16.20YA0900030 YA-900 9 9x3 46 3 82.5 104 300 689 73 85 47.5 310 42

*Other range of lift-height available upon request.
