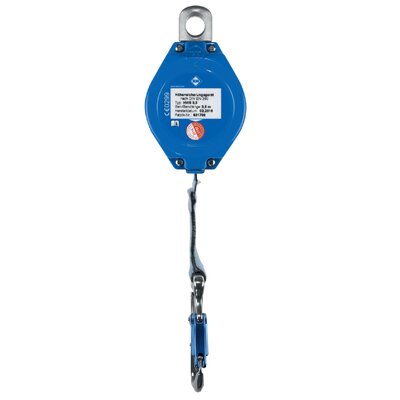

Robust, low-maintenance fall arrest device with webbing and swivel. The swivel prevents the webbing from twisting. Internal energy-absorber and hook with fall indicator.
Low weight thanks to extra light plastic housing.

Approved for vertical and horizontal use.

Rated load: 136 kg
Edge tested: Tested at sharp edges, R ≥ 0,5 mm (CNB/P/11.060 2008 sharp edge Type A)
Carabiner: IKAR IKV11 (Lk = 137 mm) Small swivel snap hook (opening Ø 25 mm).

The blocks can be delivered with the following approvals: ANSI/ASSE Z 359.14-2014/LE up on request.

  • Material: Body: Plastic. - Webbing: Dyneema®
  • Marking: According to standard
  • Temperature range: -40ºC to +50ºC.
  • Standard: EN 360
    The IKAR fall arrester has two fall indicators that are visible to users.
    The Ikari KV11 karabiner

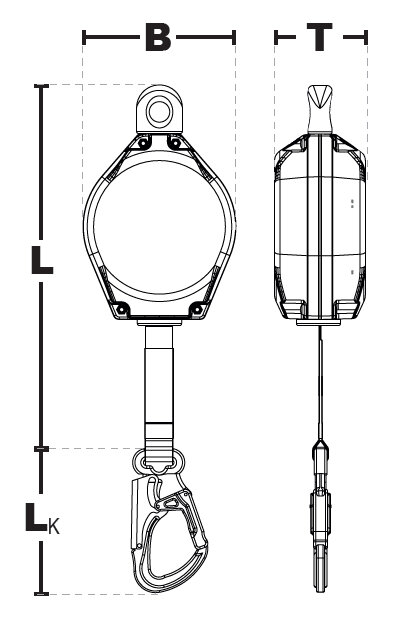

    Ikar HWPB fall arrest block measurements
    Select a row from the table below, then click the add to quote button
    Part Code Code Max. number of
    persons
    Length
    m
    L
    mm
    B
    mm
    T
    mm
    Weight
    kg
    19.0741-HWPB3,5 HWPB 3.5 1 3,5 326 104 78 1,2
    19.0741-HWPB5,5 HWPB 5.5 1 5,5 300 130 78 1,5
    19.0741-HWPB7 HWPB 7 1 7 300 165 80 1,8
    19.0741-HWPB9 HWPB 9 1 9 355 168 88 2,3
    19.0741-HWPB12 HWPB 12 1 12 370 195 95 3,4
    19.0741-HWPB15 HWPB 15 1 15 400 195 95 5,3
