WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
kwb_V_S_225mm
CL_m_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

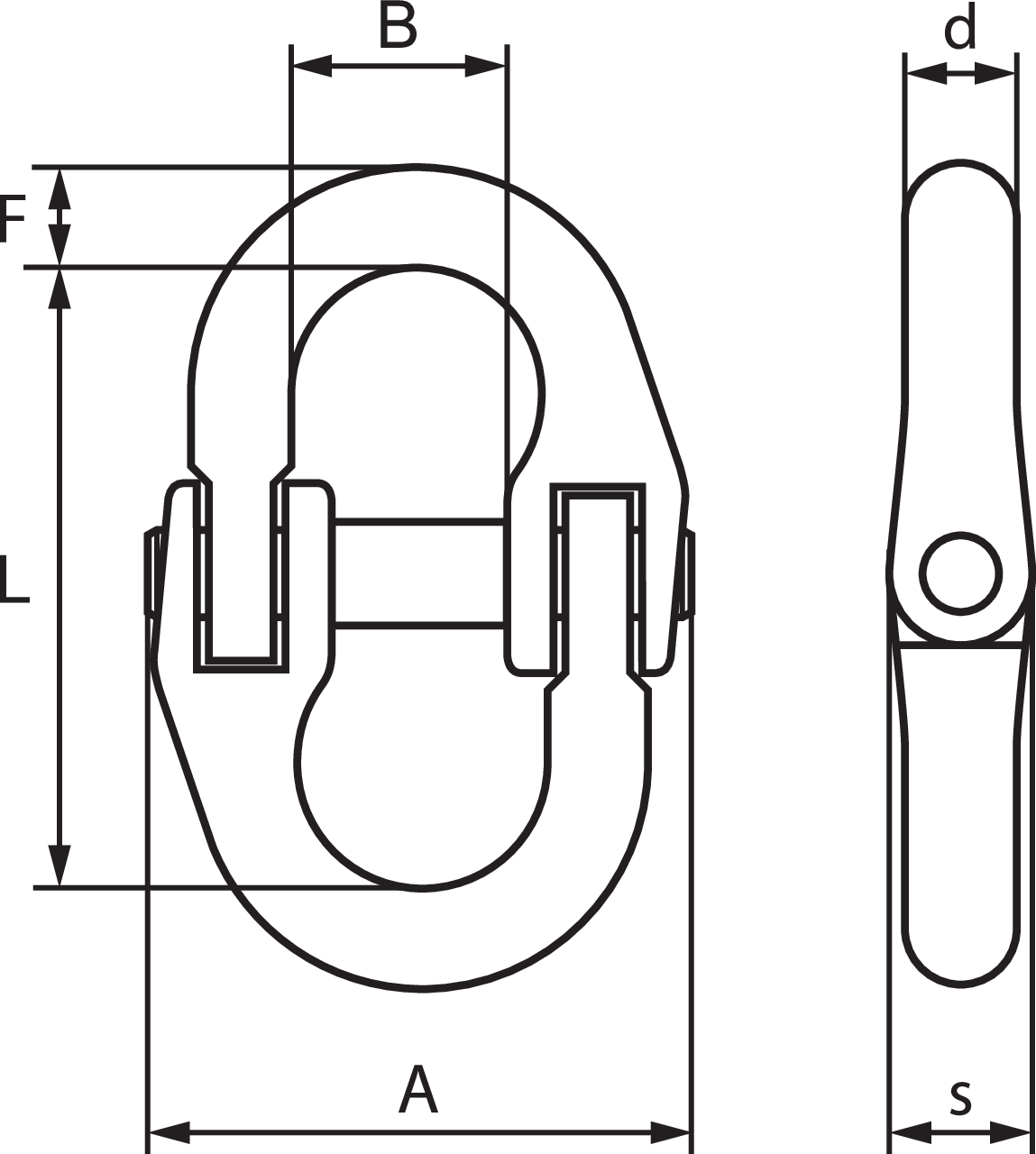

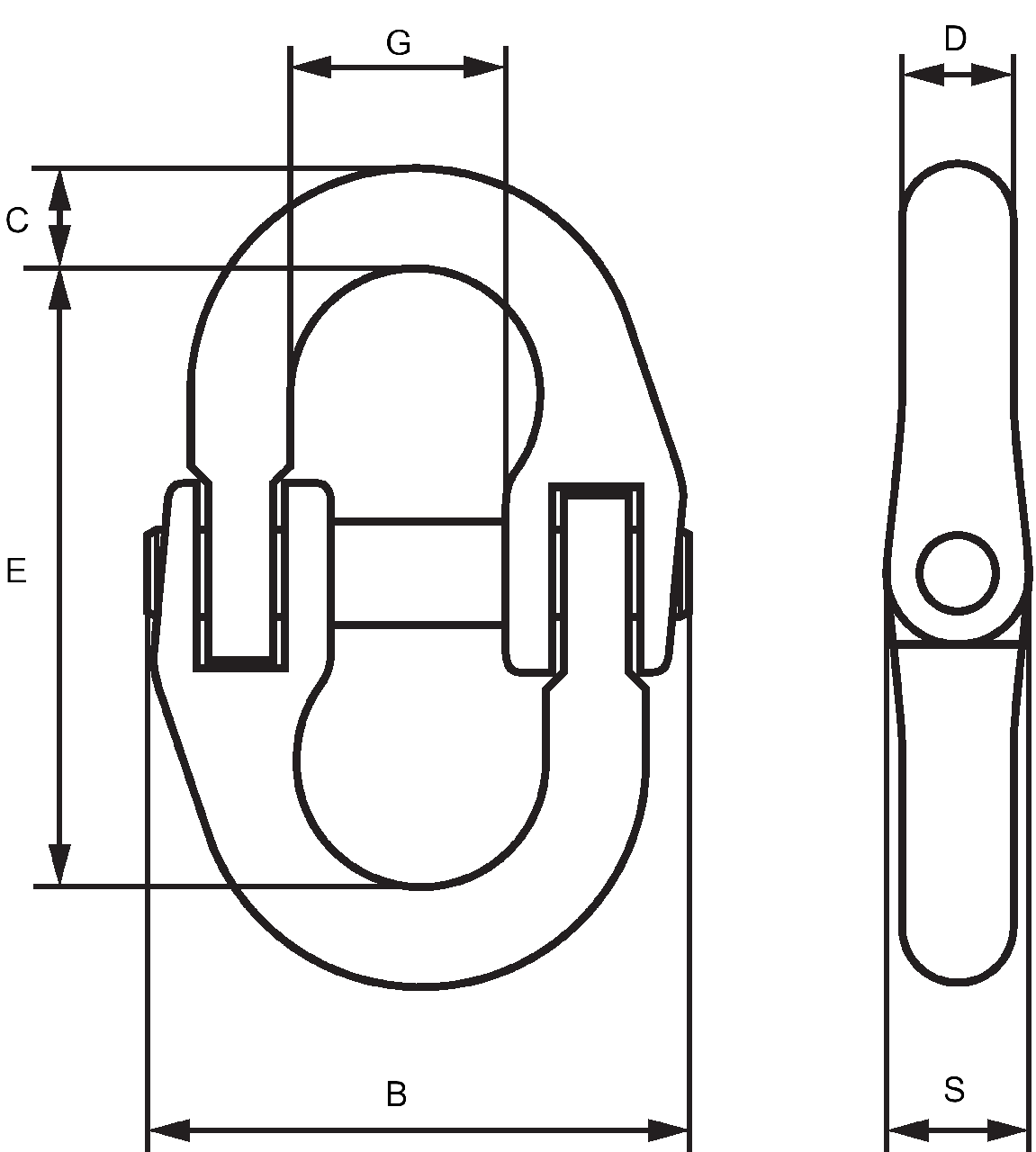

For chain gr 10 √ė
mm
A
mm
B
mm
F
mm
L
mm
D
mm
s
mm
Weight
kg
CAD
11.0665653 V/S-6-10 1.4 6 39 14 8 44 8 11 0.06
11.0669997 V/S-7-10 1.9 7 47 16 10 51 9 13 0.12
11.064343 V/S-8-10 2.5 8 53 18 12 62 10 15 0.18
11.0643432 V/S-10-10 4 10 63 23 13 72 13 18 0.33
11.0643426 V/S-13-10 6.7 13 79 28 19 88 17 22 0.7
11.0665656 V/S-16-10 10 16 106 33 21 103 21 29 1.4
11.0669998 V/S-19/20-10 16 19-20 118 42 30 115 25 35 2.4
11.0670002 V/S-22-10 19 22 148 51 34 161 25 39 4.15
11.0631643 V/S-26-10 26.5 26 175 60 40 190 30 46 6.7

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
