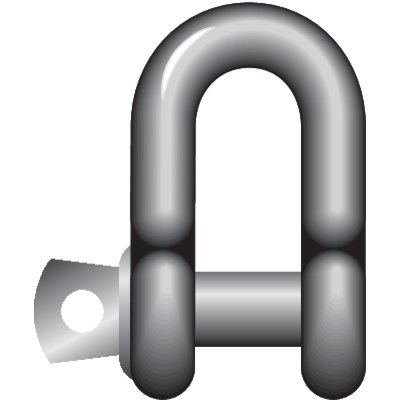

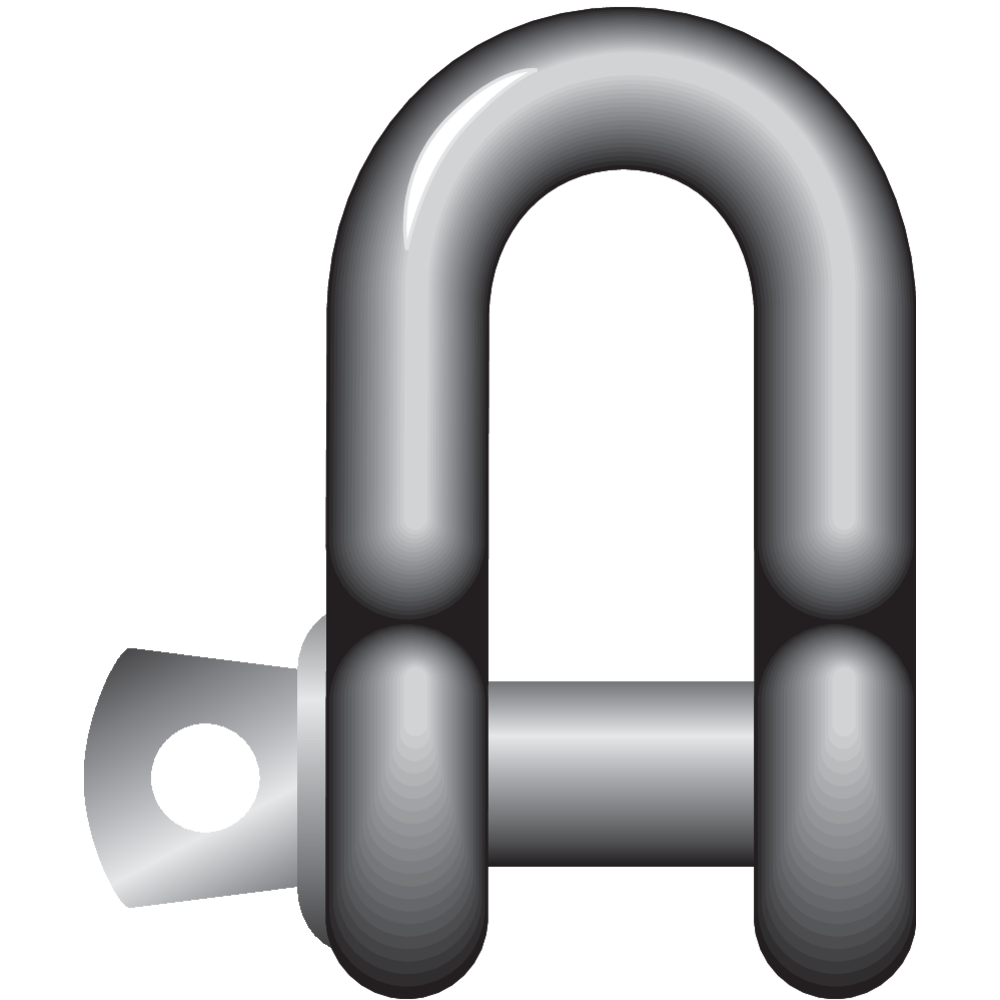

Commercial - Dee Shackle with screw collar pin.

Material: Mild steel, grade 3
Finish: Galvanized.
Warning: Not for lifting.

Select a row from the table below, then click the add to quote button

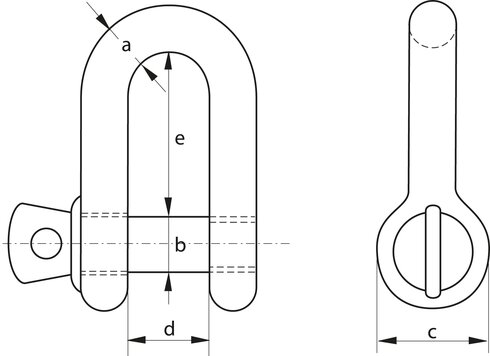

Part Code	Pin diameter mm	a mm	b mm	c mm	d mm	e mm	Weight kg/100pc
11.55E115105	5	5	5	10	10	20	1,4
11.55E115106	6	6	6	12	12	24	2,2
11.55E115108	8	8	8	16	16	32	5,2
11.55E115110	10	10	10	20	20	40	11,8
11.55E115111	11	11	11	22	22	44	14
11.55E115112	12	12	12	24	24	48	20,5
11.55E115114	14	14	14	28	28	56	29,4
11.55E115116	16	16	16	32	32	64	42,5
11.55E115119	19	19	19	38	38	76	72,6
