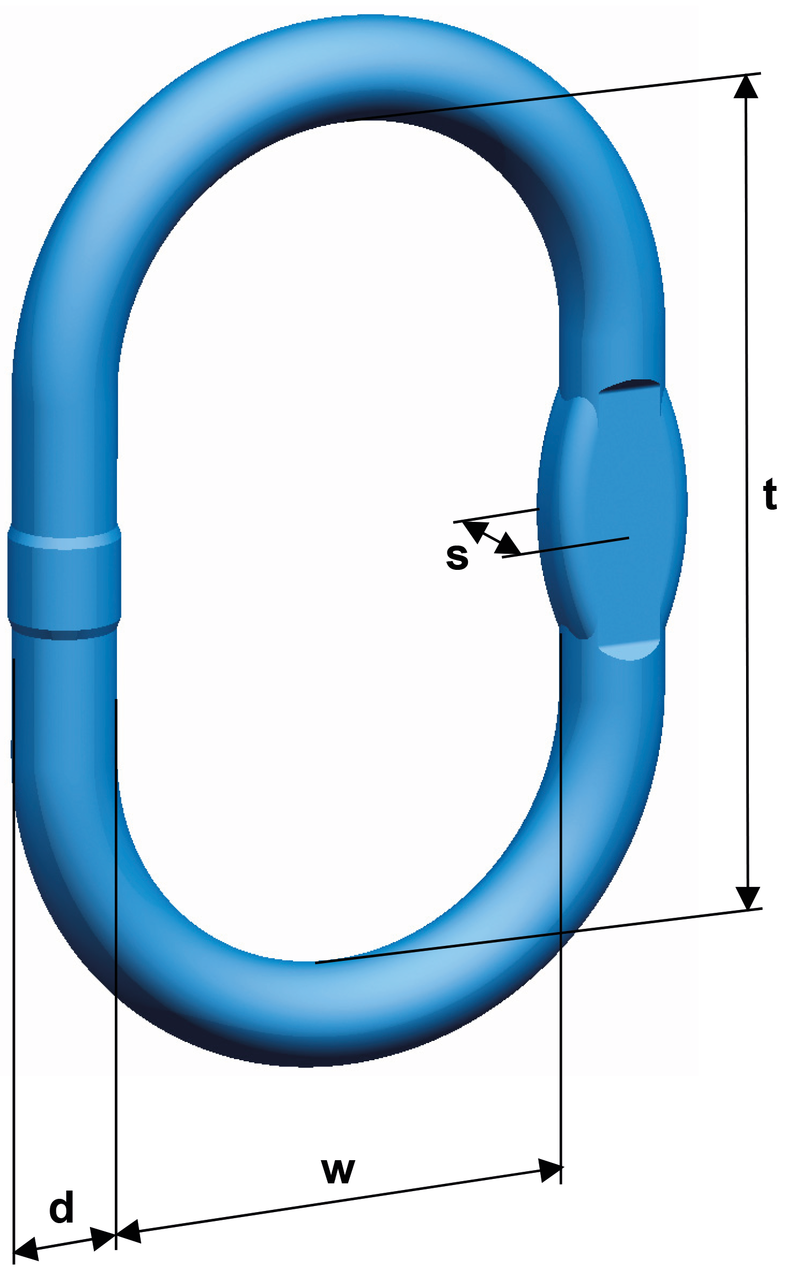

Enlarged master link with extra-large inner width compared to the AWP master link.
- Material: Alloy steel
- Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type.
- Temperature range: -60ºC up to +300ºC.
- Finish: Light blue powdercoated.
- Standard: EN 1677-4
- Warning: Not to be heat-treated.
- Safety factor: 4:1
- Grade: 12
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
To download CAD files, you must provide a valid e-mail address
