pewag

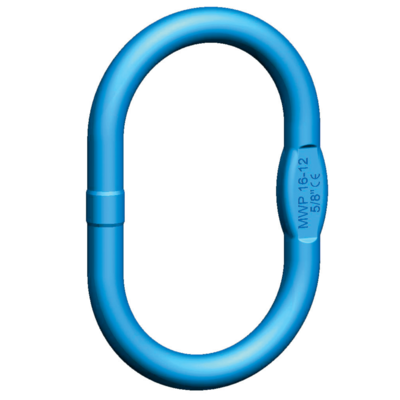

Standard master link for creating I- and II- leg chain slings using the CWP connex connecting links.

  • Material: Alloy steel
  • Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type
  • Temperature range: -60ºC up to +300ºC
  • Finish: Light blue powdercoated
  • Standard: EN 1677-4
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 12
Masterlink1
Select a row from the table below, then click the add to quote button

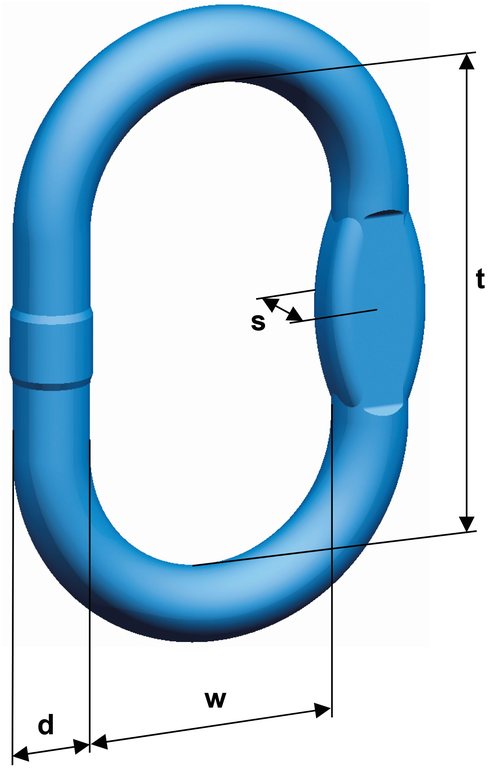

Part Code Code WLL
ton
Usable up to sling hooks following DIN 15401 No. d
mm
s
mm
t
mm
w
mm
Weight
kg
11.0387970 AWP 13 2,36 2,5 13 10 110 60 0,34
11.0387972 AWP 16 3,5 2,5 17 14 110 60 0,53
11.0387974 AWP 18 5,3 5 19 14 110 75 0,92
11.0387976 AWP 22 8 6 23 17 160 90 1,6
11.0387978 AWP 27 12,5 10 28 21 200 110 2,85
11.0328814 AWP 33 17,5 10 33 21 200 110 4,14

WLL ton is for 0°-45°
