For assembling 4-leg slings with connex connecting links, possibly all four legs can be considered as carrying. If two 2-leg slings are used at the same time and one of them is provided with a load distributor, this system can possibly also be considered as a 4-leg sling where all four legs carry the load. Because of higher WLL compared to standard 4-leg slings, keep attention to the WLL of the master link assembly. Should operational wear occur, the load distributor can be turned 180° – this increases the life cycle of the distributor and reduces the costs immensely!

  • Material: High duty grade 10.
  • Marking: According to standard, Pewag or PW, winner or 10, H16, CE, batch code and type.
  • Temperature range: -40ºC up to +380°C.
  • Finish: Orange powder coated.
  • Standard: EN 818-4
  • Safety factor: 4:1.
  • Grade: 10

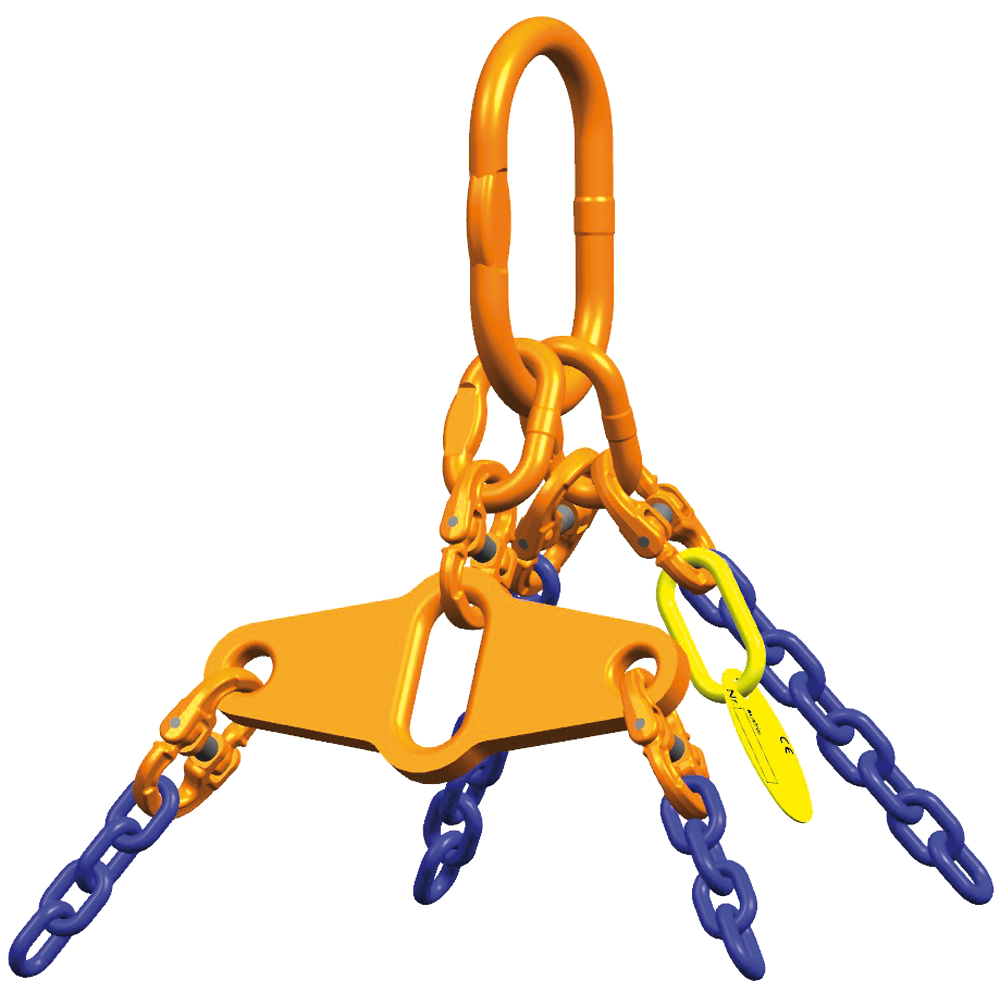

AGWW Gehaenge Ausgleichswippe

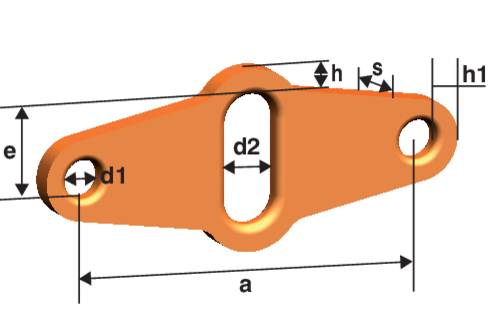

AGWW Bemassung neu 2014
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
WLL 45- 60°
ton

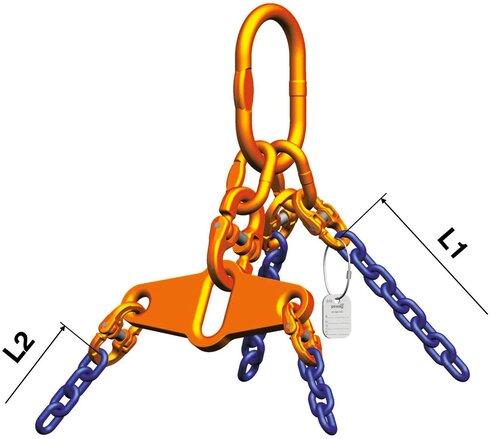

Difference L1/L2 chain links Connex* A
mm
e
mm
D1
mm
D2
mm
h
mm
h1
mm
Weight
kg
11.5995025 AGWW 5/6 2 1,4 6 for 5 mm chain 5 for 6 mm chain CW 8 148 35 16 22 11 9 0,54
11.5995027 AGWW 7/8 3,55 2,5 6 for 7 mm chain 5 for 8 mm chain CW 10 210 51 22 25 15,5 14 1,75
11.5995029 AGWW 10 5,6 4 4 CW 13 180 32 25 32 23 15,5 1,56
11.5995031 AGWW 13 9,5 6,7 4 CW 16 240 53 32 40 27 20 3,6
11.5995036 AGWW 16 14 10 4 CW 19/20 300 77 40 50 32 25 7,18
11.5903778 AGWW 19/20 20 14 5 CW 26 390 79 50 70 45 30 13,2
11.5904009 AGWW 22 26,5 19 5 CW 32 350 124 60 70 50 35 15
11.5904013 AGWW 26 37,5 26,5 4 CW 32 400 130 70 75 60 40 25,6
* Please use this connex to assemble the load distributor onto the master link assembly.
Static test coefficient = 2.5 x carrying capacity of the respective chain section; safety factor = 4
