pewag

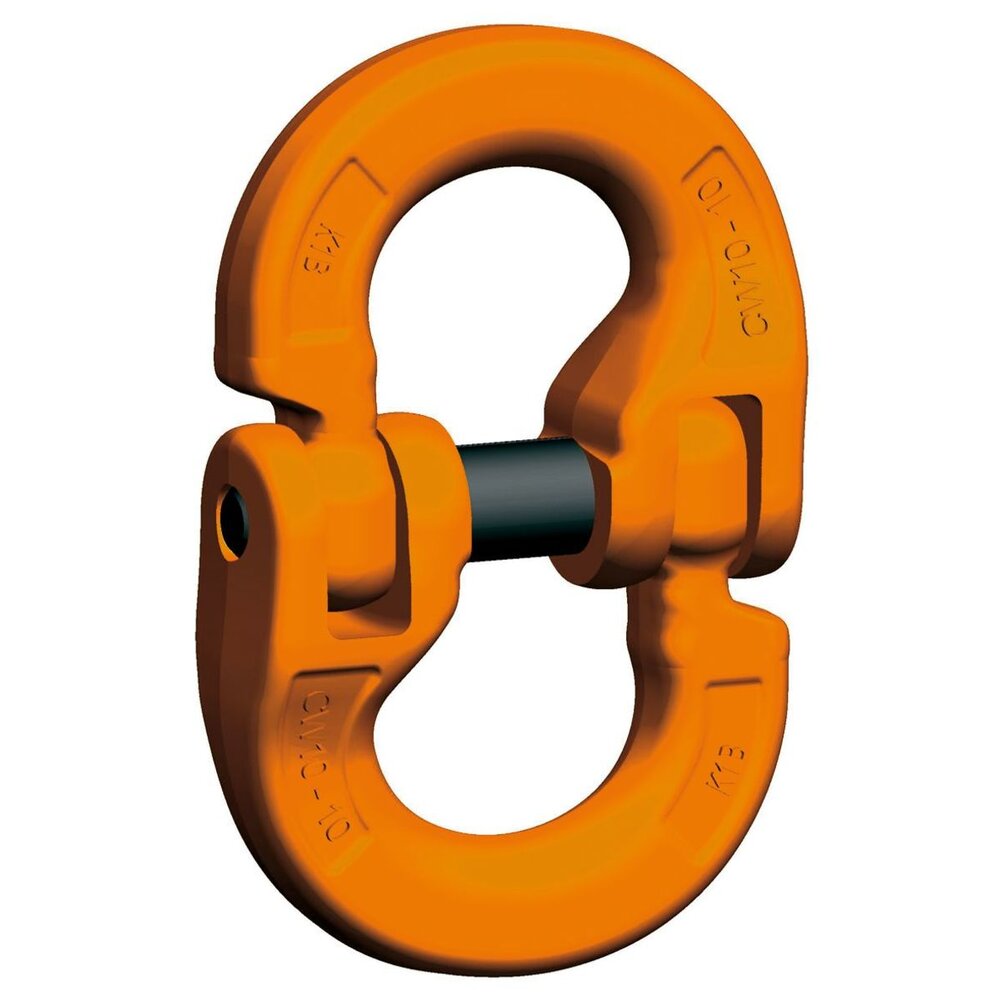

CW Connex connecting link for pewag connex system.
Load pin and collar CBH are also separately available.
Connecting link for:
Master link - chain, chain - chain, hook - chain.
Only for straight pull.

  • Material: High duty grade 10.
  • Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
  • Temperature range: -40ºC up to +380°C.
  • Finish: Orange powder coated.
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
Connex chainlock C streg
Select a row from the table below, then click the add to quote button

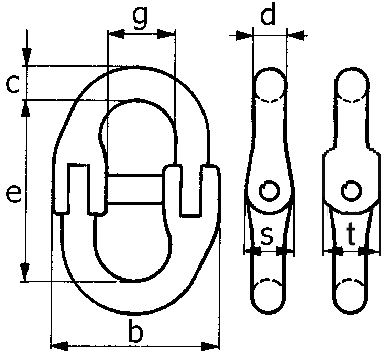

Part Code Code WLL
ton
LC
kN
b
mm
c
mm
d
mm
e
mm
g
mm
s
mm
t
mm
Weight
kg
CAD
11.064757 CW 5 1 20 34 7 7 38 13 9 12 0,06 -
11.064457 CW 6 1,4 28 39 8 8 44 14 11 13 0,08 -
11.062823 CW 7 1,9 36 46 10 9 53 17 13 16 0,14 -
11.0689347 CW 8 2,5 50 55 12 10 62 19 14 20 0,24 -
11.0689340 CW 10 4 80 64 15 13 72 24 18 22 0,42 -
11.062693 CW 13 6,7 134 79 20 17 88 28 22 26 0,85 -
11.0690112 CW 16 10 200 105 24 24 112 34 29 35 1,9 -
11.0690085 CW 19/20 16 320 123 32 25 126 42 35 45 3,1 -
11.0690041 CW 22 19 380 148 36 26 157 51 39 46 4,6 -
11.0689021 CW 26 26,5 530 175 40 30 190 60 46 49 6,8 -
11.0689023 CW 32 40 800 216 47 35 206 80 56 63 11,2 -

LC kN has SF 2:1
