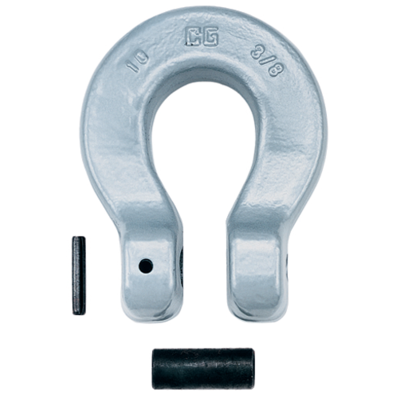

- Locking system that provides for simple assembly and disassembly – no special tools required.
- Designed to connect Grade 100 chain fittings produced with “Engineered Flat” to Grade 100 chain.
- Suitable for use with Grade 100 and Grade 80 chain.
- Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Material: Forged Alloy Steel - Quenched and Tempered.
- Marking: Chain size, code and grade.
- Finish: Painted.
- Safety factor: 4:1
- Grade: 10
