KWB

General: For 3 and 4-leg slings with shortening element.

  • Temperature range: -40ºC to 200ºC.
  • Safety factor: 4:1.
  • Grade: 12
Product Image 1
Product Supplier Logo
Product Image 2
Select a row from the table below, then click the add to quote button

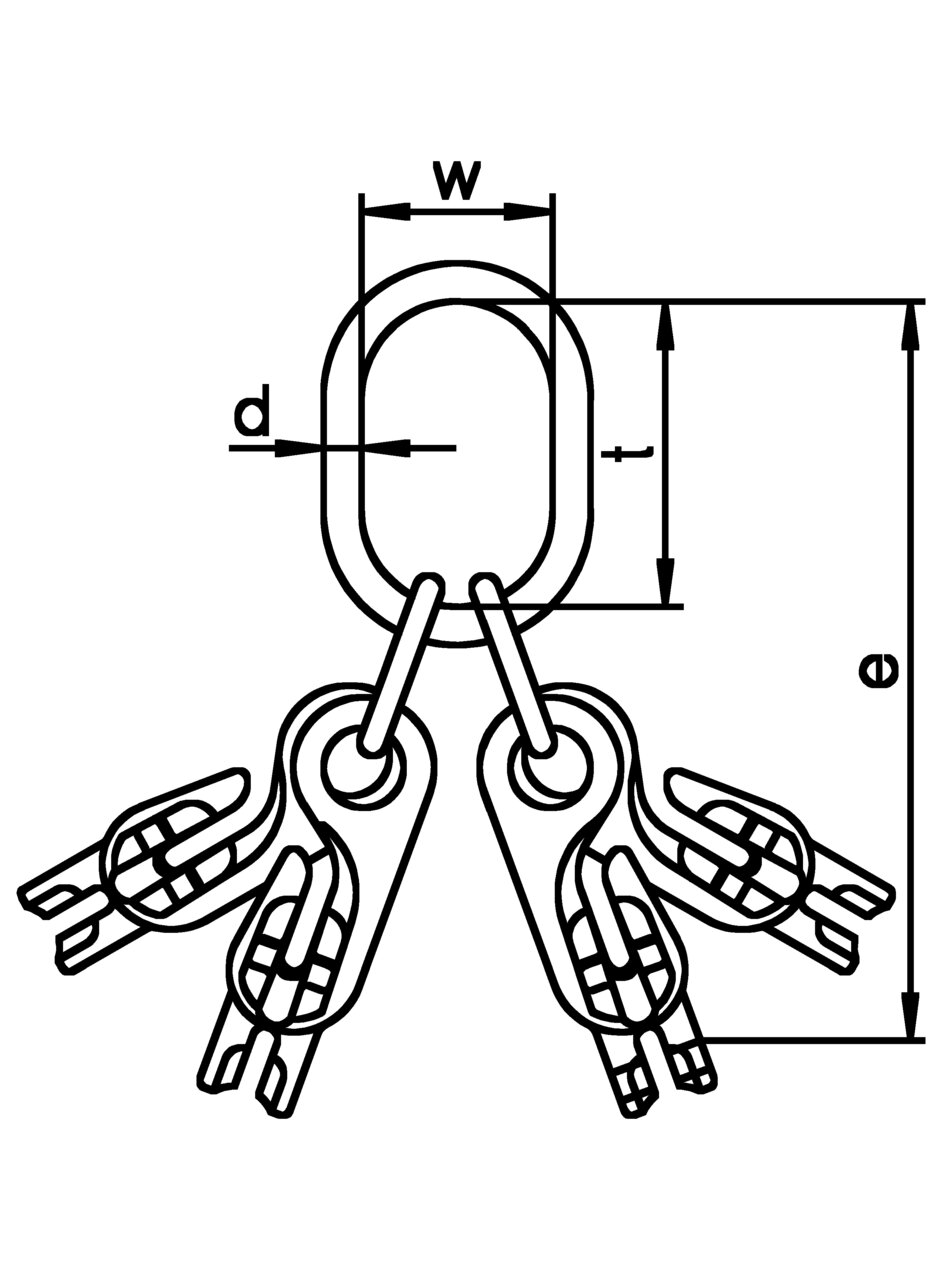

Code chain Ø
mm
Chain Ø
inch
can be usedto singlehook acc.to DIN15401no. working load limit B up to 45° kg working load limit B 45°-60°
kg
d
mm
t
mm
w
mm
e
mm
Weight
kg
GTVK/SUN 4-7 7 9/32 10 5,000 3,550 27 190 110 368 6,45
GTVK/SUN 4-8 8 5/16 10 6,300 4,500 27 190 110 368 6,45
GTVK/SUN 4-10 10 3/8 12 10,600 7,500 30 190 110 433 11,7
GTVK/SUN 4-13 13 1/2 12 17,000 11,800 38 275 150 616 23,84
GTVK/SUN 4-16 16 5/8 12 25,600 18,300 38 275 150 658 36,16
