Powertex

POWERTEX Round slings PRS are made from high strength polyester yarn having a strong protective cover.

The PRS slings are color coded for quick and easy identification of the Working load limit.

Only standard slings with full ton WLL are shown in the chart , but PRS slings can be delivered with any WLL and length on request.

  • Safe – All Powertex PRS slings are made from high strength industrial polyester and tested in accordance to EN 1492-2
  • Durable protective cover
  • Each slings carry a blue label giving correct WLL for different load connection methods and angles
  • Each sling is marked with a unique serial number for safe sling registration
  • Serial number is expressed both in numeric format as well as Barcode for quick registration and maintenance
  • Year/Month calendar printed on the label where next inspection date can be marked or punched
  • Printing on the blue label is protected by an additional transparent plastic layer for long life
  • All slings carry a white label showing pictogram with important user warning instructions
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each sling

Chemical resistance: Resistant to most acids, but not strong alkalizes.
Stretch at working load: 2-3%.
Length tolerance: Nominal length (EWL) ±2%.

  • Material: Polyester
  • Marking: According to standard, CE-marked, POWERTEX, WLL, EWL, manufacturing year, batch number, sling’s unique serial number, QR code, Inspection calendar, user warning instructions
  • Temperature range: -40°C up to +100°C.
  • Standard: EN 1492-2
  • Note: According to EN 1492-2:2000+A1:2008: D.3.6: Slings should be protected from edges, friction and abrasion, whether from the load or the lifting appliance. Where reinforcements and protection against damage from edges and/or abrasion is supplied as part of the sling, this should be correctly positioned. It may be necessary to supplement this with additional protection.
  • Safety factor: 7:1.

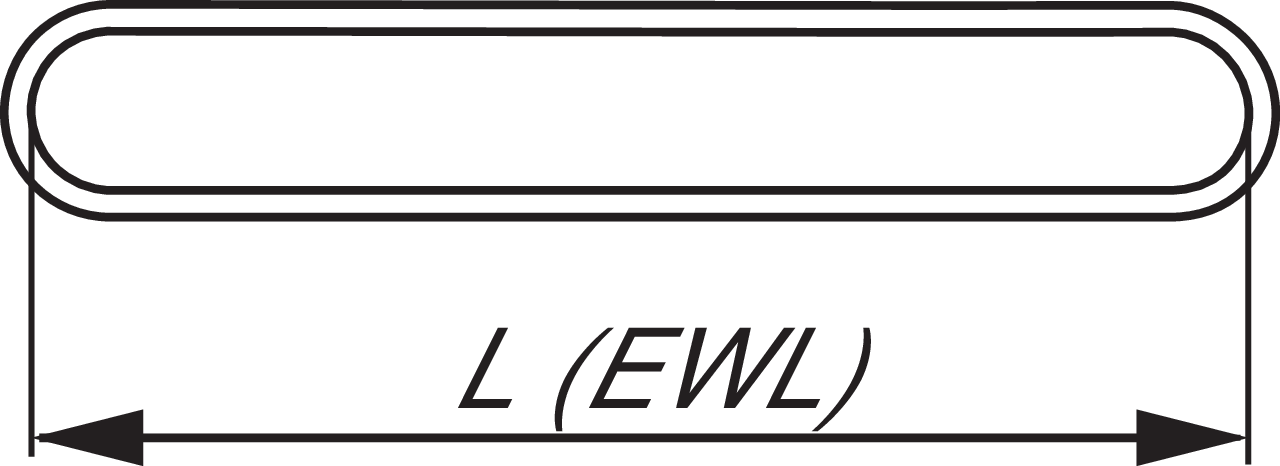

Rounding can also be delivered as 2, 3 and 4-part slings.XXX = Last 3 digits in art. no. indicates the effective working length in meters (EWL).Example XXX (020) = 2 meters.
Length-ewl_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
CAD
12.20PRS010XXX 1
12.20PRS020XXX 2
12.20PRS030XXX 3
12.20PRS040XXX 4
12.20PRS050XXX 5
12.20PRS060XXX 6
12.20PRS080XXX 8
12.20PRS100XXX 10
12.20PRS120XXX 12
12.20PRS150XXX 15
12.20PRS200XXX 20
12.20PRS250XXX 25
12.20PRS300XXX 30
12.20PRS360XXX 36
XXX= the length in three digits 1 m = 010. WLL in t.
Can be delivered in sizes up to WLL 300t.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
