• Not for lifting
  • Left spiral strand
  • Right spiral strand
  • Heavy Galvanized

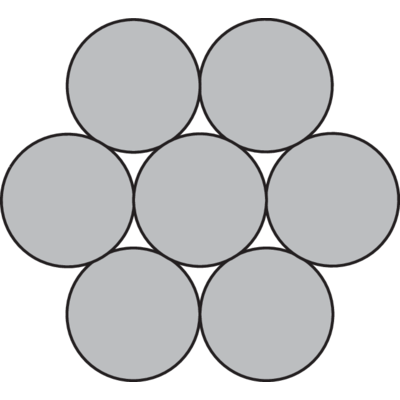

  • Rope construction: 1x7
  • Marking: According to standard
  • Standard: SS 424 08 06
  • Fill factor: 0.78
  • Stay rope Stay rope
1x7[225mm]
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1370_1420 N/mm²
Wire Ø
mm
Weight
kg/100m
01.H52007064- 6,4 25 32 2,12 19
01.H52007073- 7,3 33 43 2,44 26
01.H52007092- 9,2 52 68 3,08 41
01.H52007106- 10,6 68 89 3,52 54
01.H52007121- 12,1 89 116 4,02 70
Other dimensions on request.
Z- right; S-left
