PAWO F3 - Certex Finland

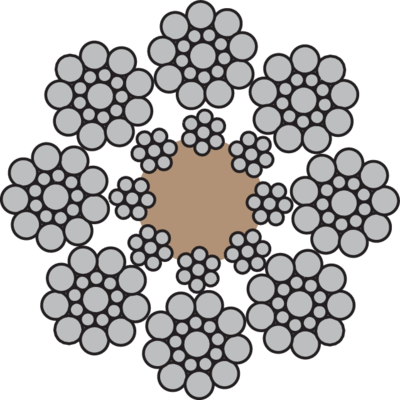

Rope construction: 8x19 Seale with steel reinforced core.
Material: 1570 N/mm2.
Marking: According to standard
Standard: EN 12385-5

Design: Regular lay

PAWO-F3

Select a row from the table below, then click the add to quote button

Part Code	Rope diameter mm	Min. breaking force kN 1570 N/mm²	Weight kg/100m
01.B10F30065D	6.5	25.9	0.16
01.B10F30070D	7	29.4	0.19
01.B10F30080D	8	38	0.24
01.B10F30090D	9	48.3	0.31
01.B10F30100D	10	60.5	0.39
01.B10F30110D	11	73.4	0.47
01.B10F30120D	12	86.8	0.55
01.B10F30130D	13	103.1	0.66
01.B10F30140D	14	119.3	0.75
01.B10F30150D	15	137.6	0.87
01.B10F30160D	16	154.8	0.98
01.B10F30180D	18	193.6	1.23
01.B10F30190D	19	217.6	1.38
01.B10F30200D	20	241.5	1.53
