  • Not for lifting

Eye terminals for pressing or swaging onto stainless steel wire rope. They are mainly used as an attachment to rigging screws or forks.

  • Material: Stainless steel AISI 316.
  • Marking: logo, wire size and swage depth.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: High polished.

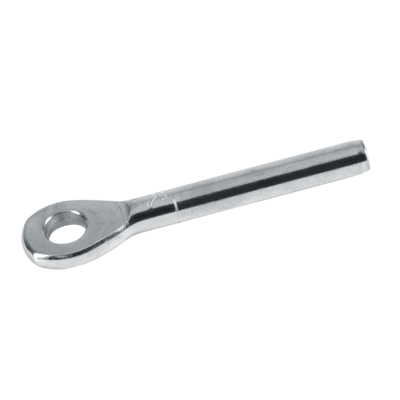

    Polished stainless AISI 316 eye terminal, For pressing or swaging onto stainless steel wire rope

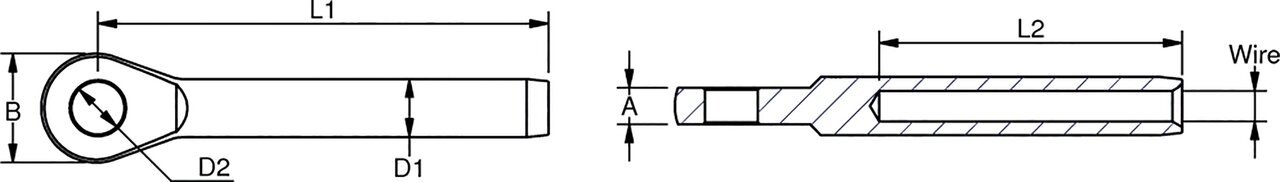

    Stainless steel AISI 316 eye terminal measurements
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    MBL
    ton
    A
    mm
    B
    mm
    D1
    mm
    D2
    mm
    L1
    mm
    L2
    mm
    Weight
    kg/100pc
    10.07190025 2,5 1 3 12 5,5 5,5 44 27 0,8
    10.07190002 2 1,2 3 12 5,5 5,5 41 24 0,9
    10.07190003 3 1,3 4 14 6,35 6,5 60 38 1,3
    10.07190004 4 1,7 5 17 7,5 8,5 67 45 2,3
    10.07190005 5 2,4 6 21 9,0 10,5 79 51 3,9
    10.07190006 6 5,5 8 25 12,58 13,0 94 64 8,7
    10.07190007 7 6,8 9 27 14,2 13,0 104 70 11,5
    10.07190006X 6 5,5 10 28 12,58 13,2 105 64 13,2
    10.07190007X 7 6,8 10 28 14,2 13,2 110 70 13,5
    10.07190008 8 8 10 30 16,0 14,5 124 83 17
    10.07190008X 8 8 12 36 16,0 16,5 141 83 23,5
    10.07190010 10 9,7 11 35 17,8 16,3 137 89 25
    10.07190010X 10 9,7 16 40 17,8 19,5 165 100 38
    10.07190012X 12 14,2 15 42 21,4 19,3 178 120 41
    10.07190012 12 11,4 15 40 20,0 19,3 156 105 41,5
    10.07190014 14 15,9 18 47 25,0 23,0 206 140 75,6
    10.07190016 16 19 20 53 28,0 26 232 160 102
    10.07190019 19 31 25 65 34,5 28,5 302 200 209
    10.07190022 22 42 30 70 40,4 33,0 348 230 314
    10.07190026 26 53 30 77 46,0 36,0 400 280 425
    Note: Difference in the outer diameter (D1) for steel wire rope 12 mm.
