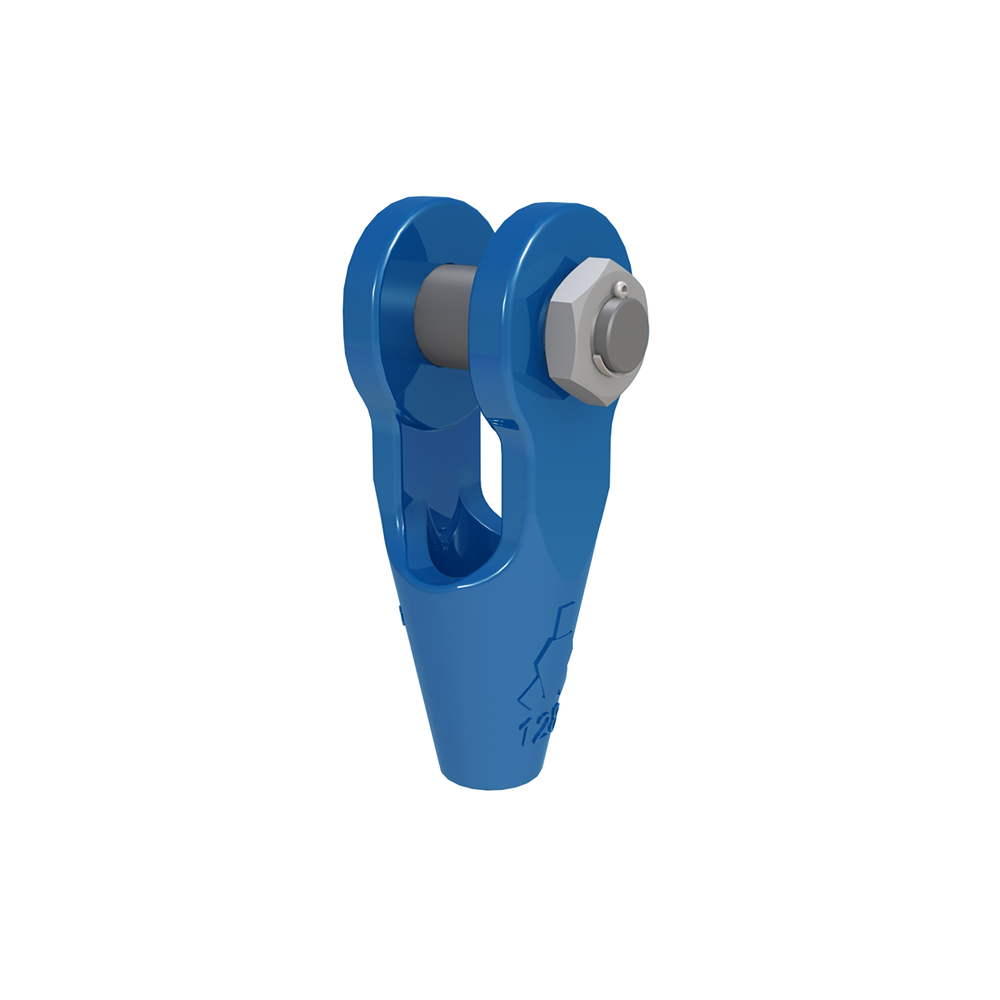

Quenched and tempered cast steel range steel wire rope sockets for embedment with cast compound with mechanical values (Charpy-V > 42 Joule /-20°C) for tough and low temperature use. For wire rope diameter 6 - 203 mm (1/4” - 8”).
2 surface finishes available:
- Model OSS B: blue painted. (OSS 196 - OSS 100 only hot dipped galvanized)
- Model OSS B.GAL: Hot dipped galvanized.
- Bolt securing by nut and cotter pin.
- All spelter sockets have a 100% efficiency.
- Also avaiable with pin + cotter pin ( type OSS P )
- Material: Quenched and tempered cast steel
- Marking: Size, wire rope diameter and batch or serial number.
- Temperature range: From - 40°C up to +110°C - 100% capacity range.
- Finish: OSS B blue painted - OSS BGALV : Hot dipped galvanized.
- Note: For intermediate rope diameter select fittings with nearest following size.
- Warning: Compare the spelter's and the wire rope's minimum breaking load.
