Digital dynamometer with high efficiency and precision in all environments. The dynamometer is also ideal for wet, humid and harsh environments. Fast charging with standard USB charger. LED display is visible at long distances with big, red digits. With peak hold function, tare function and channel selection.

Specifications:
Accuracy: ±0,2%
Safe overload: 110%
IP Class: IP67
Display: Bright LED
Digit height: 14 mm
Digit colour: Red
Operating time: 16-20 hours (Low temperature will decrease the operating time)
Batteries: Built-in Li-on
Charger: High quality USB charger

Accessory options:
Wireless remote display (purchased separately, Art No.: 16.502000B-6V-RTX)

  • Material: High strength steel housing.
  • Temperature range: -20°C up to +50°C.
  • Finish: Fe/Zn12 chromite surface treatment according to ISO 2081.
  • Safety factor: 5:1.
Select a row from the table below, then click the add to quote button

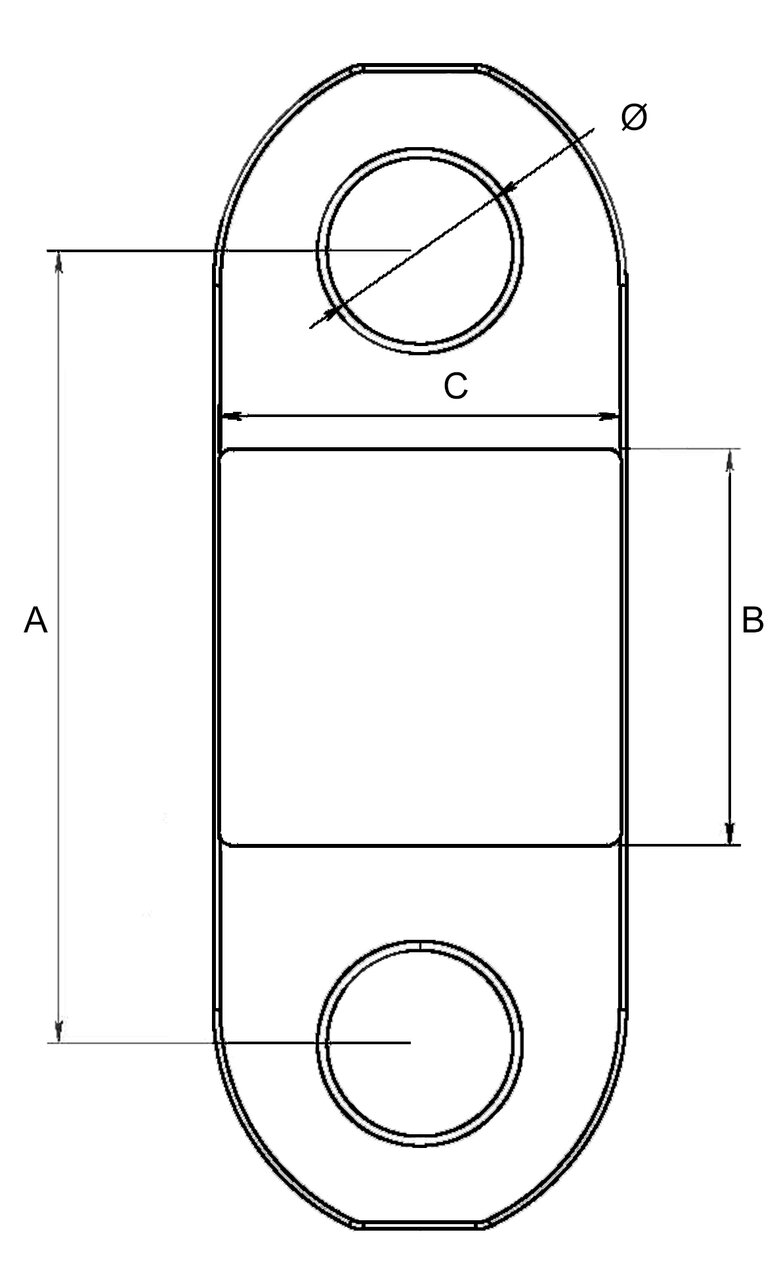

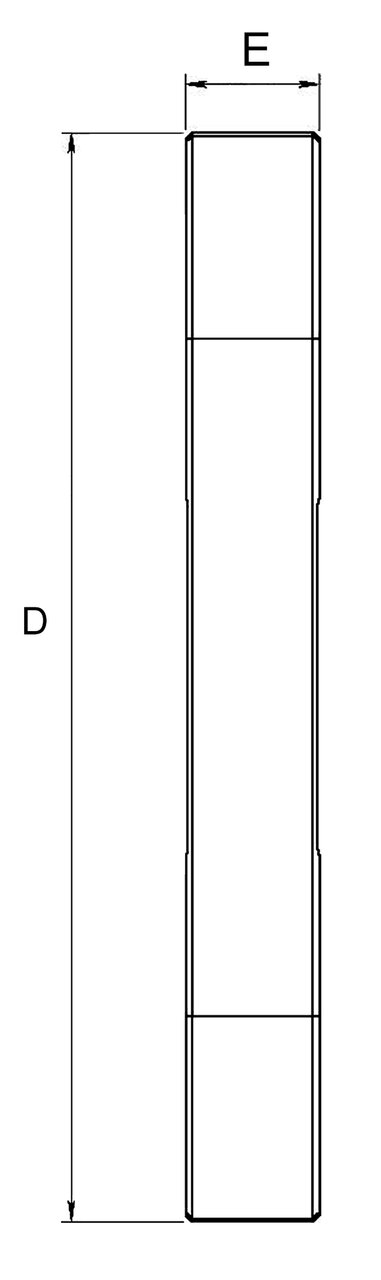

Part Code Capacity
ton
Increment
kg
A
mm
B
mm
C
mm
D
mm
E
mm
Ø
mm
Weight
kg
CAD
16.50670601 6.5 5 200 115 117 260 41,5 31 4.47
16.50671201 12 10 200 115 117 281 41,5 37,3 5.65
16.50672501 25 10 230 115 117 338 41,5 54 7.56
16.50675501 55 50 282 115 155 440 46 73 16.93

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
