Terrier

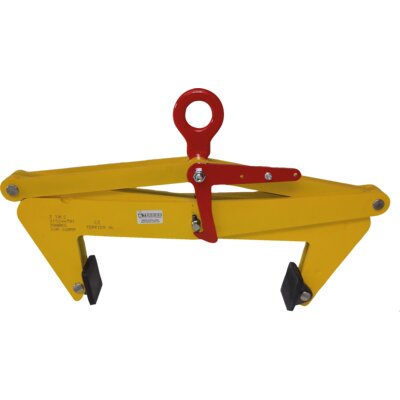

Clamp for vertical lifting and transporting of all plates, blocks and structures with parallel sides without marking, scratching and or damaging the material surface. Perfect for lifting materials such as (stainless) steel, aluminum, nature stone, composite, painted materials, wood, glass, plastic, etc .The clamp is locked in the open position. To perform lifting, the operator must activate the handle and hold it up while the force on the lifting eye is going upwards. When laying down the load, the clamp automaticly locks itself open.

Features:

  • 2 special synthetic anti-friction pads to guarantee non-marking.
  • Lightweight design and easy to use.
  • Tough quality heavy duty body.
  • Maintenance-friendly, easy to exchange parts. Parts available upon request.
  • No minimal WLL needed.
  • Marking: According to standard, CE-marked
  • Temperature range: -10°C to +30°C.
  • Standard: EN 13155
    Lifting clamp for vertical lifting and transporting of all plates, blocks and structures
    Select a row from the table below, then click the add to quote button

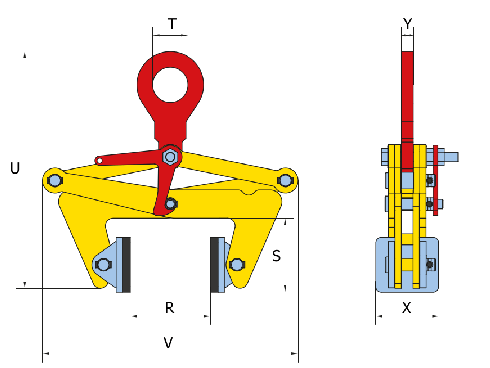

    Part Code Code WLL
    ton
    Jaw width
    mm
    V min-max U min-max S
    mm
    T
    mm
    X
    mm
    Y
    mm
    Weight
    kg
    16.01801005 0.5 TBLC 0,5 30-110 270 - 325 305-460 95 45 80*70 15 7
    16.01801010 1 TBLC 1 100-230 425 - 530 380-655 120 45 80*70 15 12,3
    16.01801020 2 TBLC 2 220-360 580 - 675 410-735 140 45 80*70 15 18
    16.01801030 3 TBLC 3 350-500 725 - 835 530 - 900 178 64 100*90 16 33
