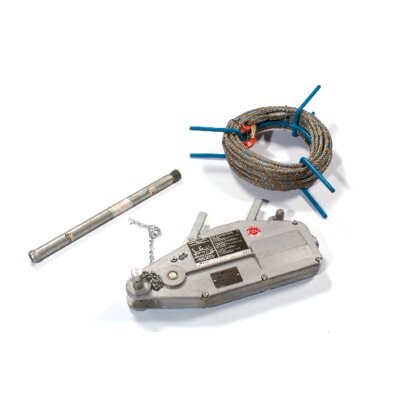

For pulling, lifting lowering and securing with unlimited length of wire rope. Works in any position: horizontal, vertical or angled. The wire rope tackle comes with a wire rope length of 20 meters with fitted sling hook. Other length according to request.

Features:

  • Lightweight and easy to use
  • Housing in high strength aluminium alloy
  • Rustproof and impact resistant
  • Overload protection:
    • The shearing pin shears off at 25% overload
    • Operating lever bends at 50% overload
  • Marking: CE-marked, capacity, serial number etc.
  • Safety factor: 5:1
Wadre pic

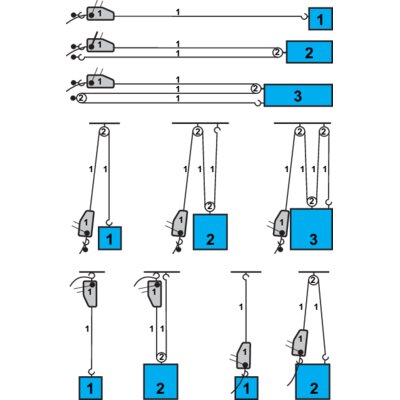

Schema_225mm
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lifting height
m
Type Dimensions
mm
Weight
kg
16.25808 0,8 20 808 420 x 230 x 165 6
16.25808UW 0,8 20 808 420 x 230 x 165 6
16.25816 1,6 20 816 550 x 280 x 165 11
16.25816UW 1,6 20 816 550 x 280 x 165 11
16.25832 3,2 20 832 680 x 330 x 230 21
16.25832UW 3,2 20 832 680 x 330 x 230 21
Part codes with UW are excl. wire rope. Part codes without UW are incl. 20 m wire rope.
Weight is excl. wire rope.
