The RED ROOSTER Mini Air Chain Hoists are besides industrial
use also very suitable for "Material Handling".
Due to the low weight these hoists are very suitable for service applications. Special for use in tank cleaning installations we recommend stainless steel chain.

Features:

  • Low weight and therefor very mobile, easy mounting
  • TCR-125 - TCR-250 only 7 kg, 3 meter lift included
  • TCR-500/2 only 9 kg, 3 meter lift included
  • Precise varaiable speed control (cord - and pendant control)
  • Very compact design
  • Robust aluminum housing
  • Air motor is cooled by the exhaust air (internal)
  • Cord control or pendant control
  • Low noise level

Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold separately.)

Product Image 1
Product Image 1
Select a row from the table below, then click the add to quote button
Part Code WLL Lifting height
m
Type Chain falls Lifting speed without load
m/min
Air consumption lifting (l/sec) Lifting speed with load
m/min
Lowering speed with load
m/min
Air consumption lowering (I/sec) Weight with 3m HOL CAD
16.30TCR-125C 0.125 3 TCR-125C 1 19 11.7 14 16 15 7
16.30TCR-125DPE 0.125 3 TCR-125DPE 1 17.2 11.7 12.8 13 15 8.6
16.30TCR-250C 0.25 3 TCR-250C 1 19 11.7 9.3 17 15 7
16.30TCR-250DPE 0.25 3 TCR-250DPE 1 17.2 11.7 8.1 13 15 7
16.30TCR-500C2 0.5 3 TCR-500C2 2 9.5 11.7 4.6 9 15 9
16.30TCR-500DP2 0.5 3 TCR-500DP2 2 9.5 11.7 4.6 9 15 9

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

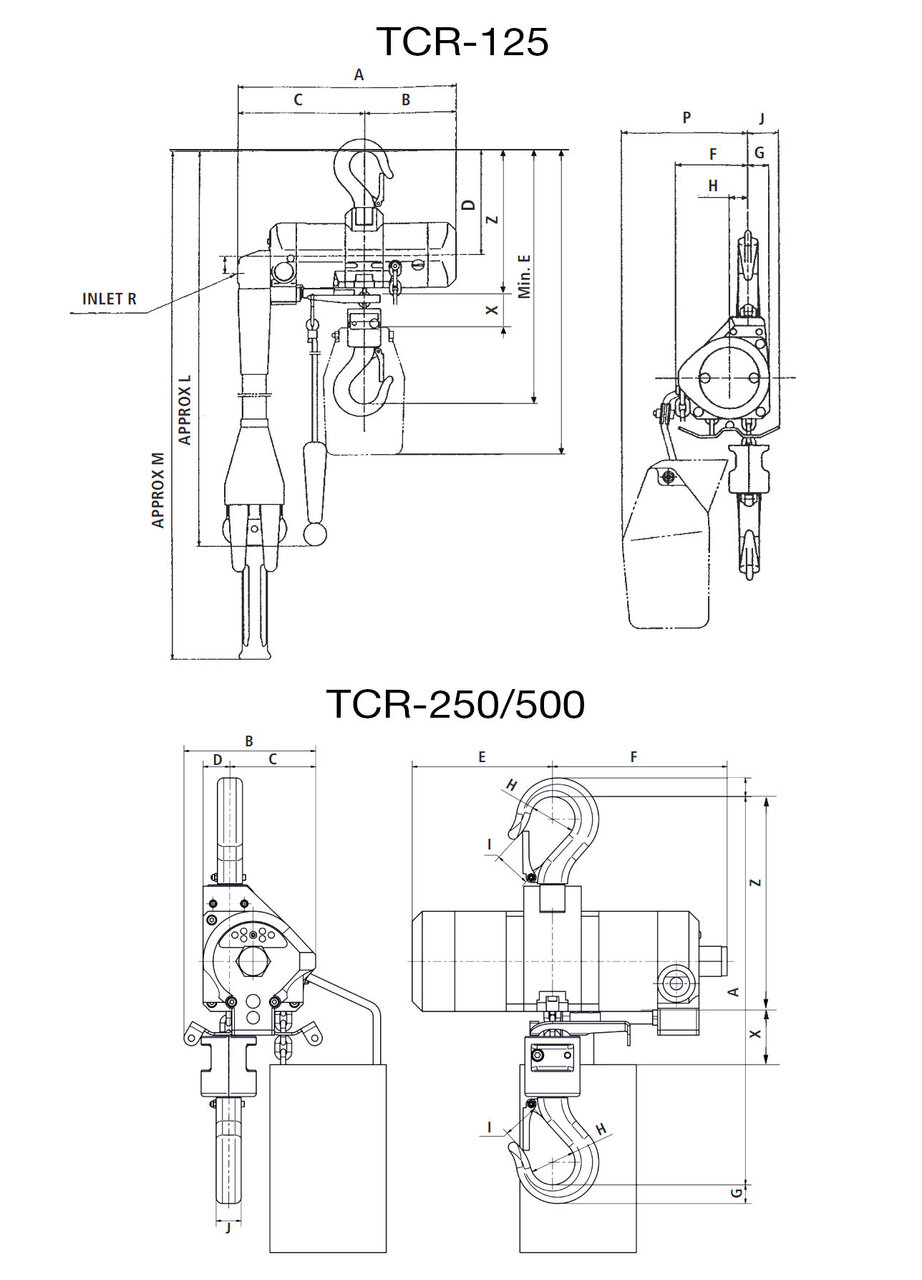

DIMENSIONS

Type J  K  X Z
TCR-125C  249 112 137 130 305 71 21 19 33 1.660  375 124 P/T  3/8 40 170
TCR-125DPE  286 112 174 130 305 71 21 19 33 21 2310 375 124 P/T  3/8 40 170

Type A B C D E F G H I J X Z
TCR-250C  305 105 69 22 112 140 15 35 22 20 40 170
TCR-250DPE  305 105 69 22 112 140 15 35 22 20 40 170
TCR-500C2 /DP2 360 118 83 35 112 140 15 36 22 20 40 180
