Terrier

Lightweight heavy duty clamp for safe and easy lifting of sheets that will bend or deflect when being lifted. The TDH horizontal lifting clamps must always be used in pairs (or multiples thereof).

Features:

  • Compact design and high lifting capacity
  • Lightweight design for easy handling
  • Tough quality heavy duty welded body
  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
  • Note: Must always be used in pairs (or multiple pairs)
  • Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)
Select a row from the table below, then click the add to quote button
Part Code Code WLL ton/pair Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg
CAD

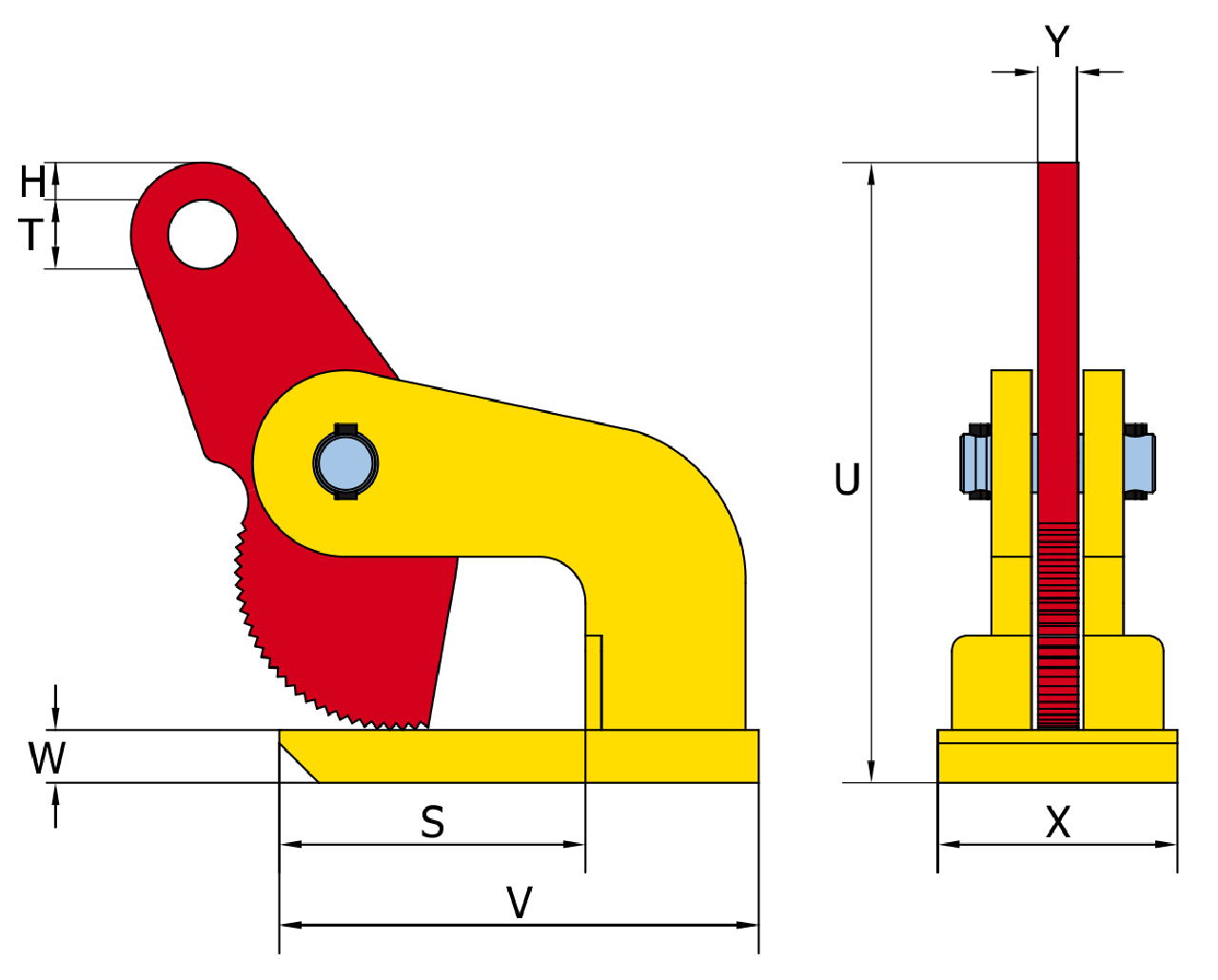

16.01970100 1 TDH 1 0-15 167 140 65 10 100 22,5 15 13 3
16.01970200 2 TDH 2 0-35 235 180 80 20 115 26 15 13 8
16.01970400 4 TDH 4 0-50 310 235 130 35 130 40 20 25 18
16.01970600 6 TDH 6 0-50 310 235 130 35 130 40 20 25 18

Download CAD
