For horizontal lifting and transporting of steel plates and other non-deflecting materials. FHX / FHSX lifting clamps only to be used and sold in pairs (or multiple pairs).

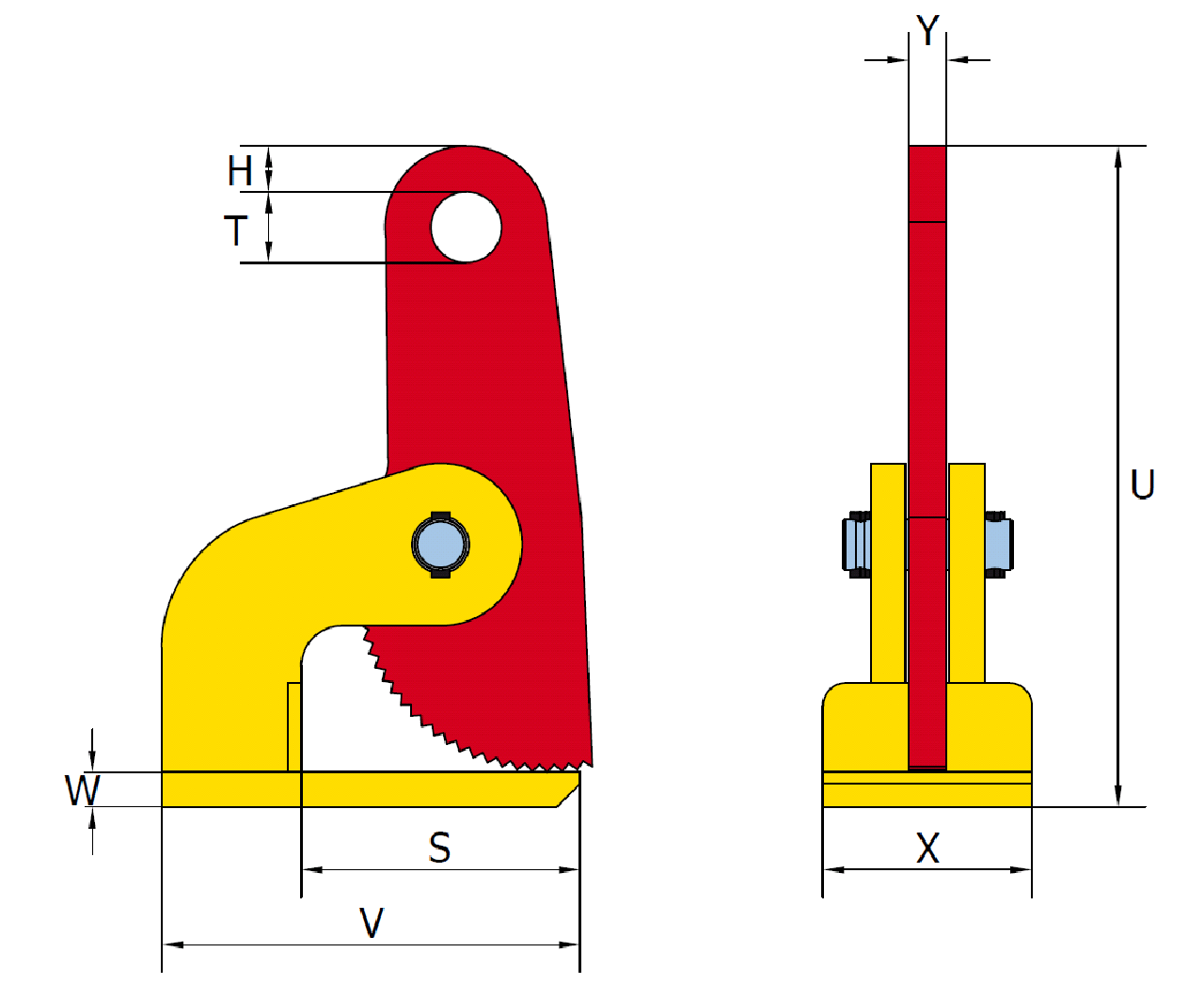

Model FHX : Standard clamp
Model FHSX : Clamp with enlarged jaw opening.
- Compact design and high lifting capacity
- Lightweight design for easy handling
- Tough quality heavy duty welded body
- Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
- Temperature range: - 40°C to +100°C.
- Standard: EN 13155
- Note: Must always be used in pairs (or multiple pairs)
- Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)
