TCR-Series Air Chain Hoist

General:
Air chain hoist for loads from 250 up to 2000 kg.
These RED ROOSTER Air Chain Hoists are especially developed for heavy industrial use. Robust cast steel body. Valve block is the same for all models meaning: less spare parts required.

Standard features:

  • Precise variable speed control (cord- and pendant control).
  • Optimum control of the load, very precise positioning.
  • Compact design.
  • Endstop system.
  • Load limiter built-in without loss of headroom.
  • Cord control or pendant control.
  • Low noise level.
  • Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar).


Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)


Recommended:
We highly recommend the use of an SMC air treatment unit.
(Sold separately.)

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Air consumption lifting (l/sec) Air consumption lowering (I/sec) Chainfalls Lifting speed with max.load (m/min) Lowering speed with max.load m/min Air connection Workingpressure bar Weight at 3m HOL (kg) Lifting speed without load (m/min) Min hosediam. CAD
16.30TCR-600250C TCR-600250C 0.25 25 27 1 (6.3x19.1mm) 10.5 17.9 1/2" BSPT 6 31.1 20.5 1/2"
16.30TCR-600250PE TCR-600250DPE 0.25 25 27 1 (6.3x19.1mm) 10.5 17.9 1/2" BSPT 6 31.1 20.5 1/2"
16.30TCR-500C TCR-500C 0.5 25 27 1 (6.3x19.1mm) 10.5 17.9 1/2" BSPT 6 31.1 20.5 1/2"
16.30TCR-500PE TCR-500PE 0.5 25 27 1 (6.3x19.1mm) 10.5 17.9 1/2" BSPT 6 31.1 20.5 1/2"
16.30TCR-1000C2 TCR-1000C2 1 25 27 2 (6.3x19.1mm) 5.3 9 1/2" BSPT 6 35.2 9.5 1/2"
16.30TCR1000P2E TCR-1000P2E 1 25 27 2 (6.3x19.1mm) 5.3 9 1/2" BSPT 6 35.2 9.5 1/2"
16.30TCR-1000C TCR-1000C 1 25 28 1 (7.1x21mm) 6 10.3 1/2" BSPT 6 34 11.3 1/2"
16.30TCR-1000PE TCR-1000PE 1 25 28 1 (7.1x21mm) 6 10.3 1/2" BSPT 6 34 11.3 1/2"
16.30TCR-2000C2 TCR-2000C2 2 25 30 2 (7.1x21mm) 3 5.2 1/2" BSPT 6 39.7 5.7 1/2"
16.30TCR-2000P2E TCR-2000P2E 2 25 30 2 (7.1x21mm) 3 5.2 1/2" BSPT 6 39.7 5.7 1/2"

Download CAD

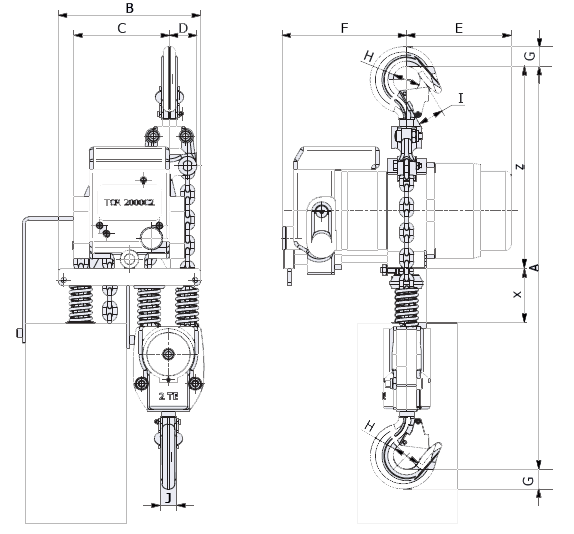

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Type
A
B
C
D
E
F
G
Hø
I
J
X
Z

mm











TCR-600250 / TCR-600250DPE
460
212
115
51
156
186
29
40
29
29
100
250
TCR-500C / TCR-500PE
460
212
115
51
156
186
29
40
29
25
100
250
TCR-1000C2 / TCR-1000P2E
519
212
139
27
156
186
29
40
29
25
100
250
TCR-1000C / TCR-1000PE
485
212
116
40
156
186
29
40
29
25
100
250
TCR-2000C2 / TCR-2000P2E
580
212
143
50
156
186
37
45
29
30
100
280
