• Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

These steel wire ropes are especially targeted towards use in theaters and scenes. We offer dimensions from 1,5 mm up to 10 mm, fiber core or steel core with a lot of different constructions to suit your needs. Steel wire ropes are tested to have the highest quality, and are coloured black through a chemical process.

  • Rope construction: 6x19M-WSC
  • Marking: According to standard
  • Finish: Galvanized and electrophosis black
  • Standard: EN 12385-4

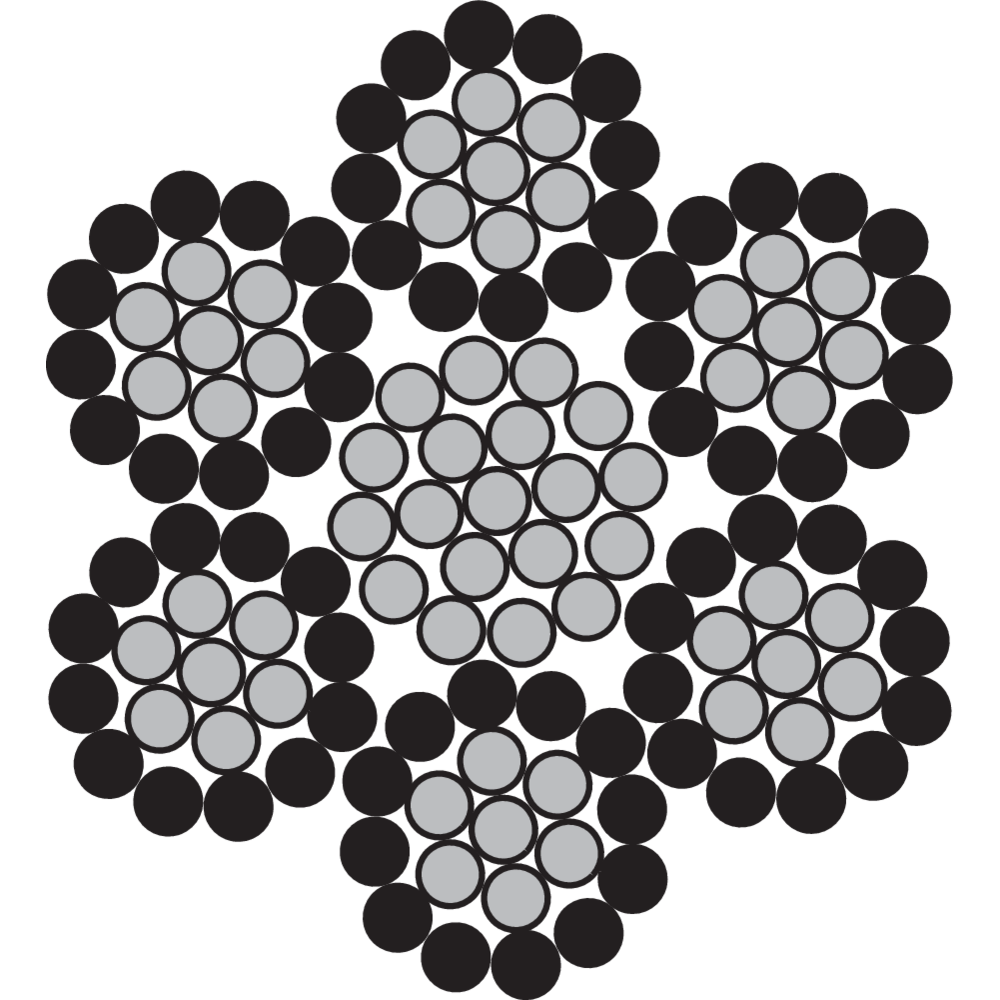

    Steel Wire Rope 6x19M-WSC BLACK cross section
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    Steel Area
    mm²
    Min. breaking force
    kN
    1960 N/mm²
    Colour Weight
    kg/100m
    01.T10133030G 3 3,76 6,39 Black 3,43
    01.T10133040G 4 6,69 11,4 Black 6,1
    01.T10133050G 5 10,5 17,7 Black 9,53
    01.T10133060G 6 15 25,5 Black 13,7
    01.T10133070G 7 20,5 34,8 Black 18,7
    01.T10133080G 8 26,8 45,4 Black 24,4
