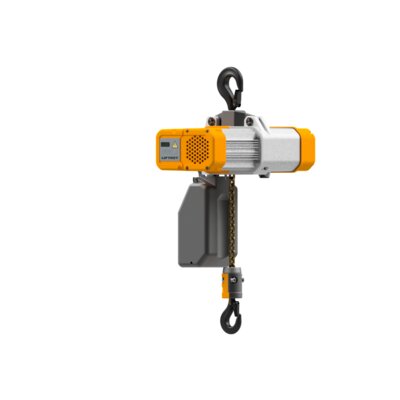

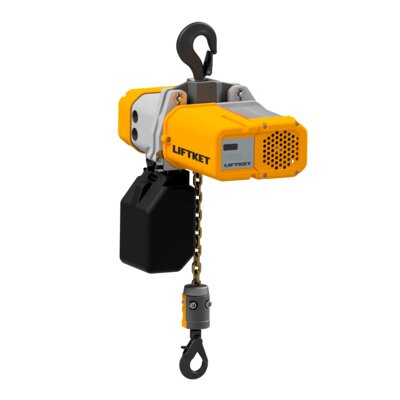

The 1-phase STAR LIFTKET VFD electric chain hoist is equipped as a standard with limit switches (up/down), control pendant with emergency stop and a thermal sensor.
Optionally, the chain hoist can be ordered with various suspensions, trolley or chain boxes.
Features:
- Load capacity 125 – 2.000 kg
- Load-dependent, variable speed control from 2 to 24 m/min
- One hoist for a worldwide use (200 – 240 V / 50 and 60 Hz)
- The hoists can be operated with up to 200% of the nominal speed by moving without load
- First chain hoist with integrated display for displaying the following values:
- Remaining useful life
- Operating hours
- Full load hours
- Number of brake clearances
- Inverter temperature
- Decreases the maintenance effort and cost
- With hoisting limit switches
- With overheating protection for lifting motor and VFD
- UL solutions available
- Protection class IP55
- All mechanical accessories and components are fully compatible (e.g. Chain bags, trolleys, special chains, variations, etc.)
- Marking: CE-marked



Select a row from the table below, then click the add to quote button
Code | A | B | C | G | G2 | F |
mm | mm | mm | mm | mm | mm | |
125/1-12 | 266 | 232 | 274 | 555 | 611 | 66-135, 137-215, 220-300 |
250/1-12 | 266 | 232 | 274 | 555 | 611 | 66-135, 137-215, 220-300 |
500/1-8 | 266 | 232 | 274 | 555 | 611 | 66-135, 137-215, 220-300 |
1000/1-6 | 266 | 232 | 274 | 555 | 611 | 66-135, 137-215, 220-300 |
2000/2-3 | 266 | 232 | 274 | 555 | 611 | 66-135, 137-215, 220-300 |
