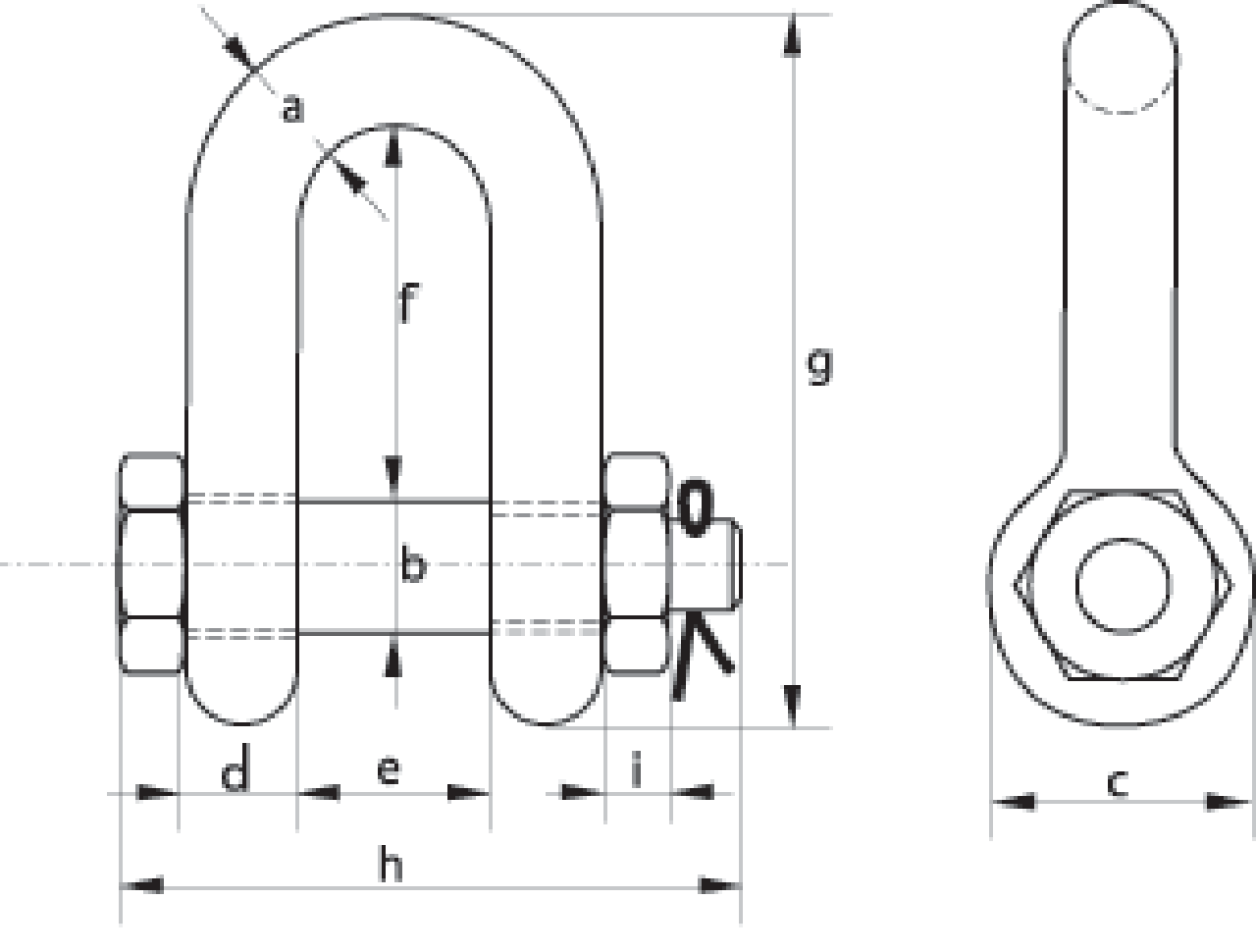

General: Dee shackle with safety bolt.
Certification: This product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity. All shackles starting from 2 t can be supplied with DNV 2.7-1 certificate.
Note: This shackle can also be delivered with fixed nut (an extra AISI 316 securing bolt is drilled through both the nut and shackle pin. This securing bolt is fastened with two sets of Nord-Lock® washers and a securing nut. These washers lock when subjected to movement and keep the nut safely in position).
- Material: Bow and pin high tensile steel, Grade 6, quenched and tempered.
- Marking: According to standard
- Temperature range: -40°C up to +200°C.
- Finish: Hot dipped galvanized.
- Standard: EN 13889
- Safety factor: 6:1
- Grade: 6
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
