KWB






  • Material: Alloy steel grade 10.
  • Marking: According to standard, Code and grade.
  • Finish: Painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1.
  • Grade: 10
kwb_GL_S1_225mm
kwb_GL_S1_m_225mm
Select a row from the table below, then click the add to quote button

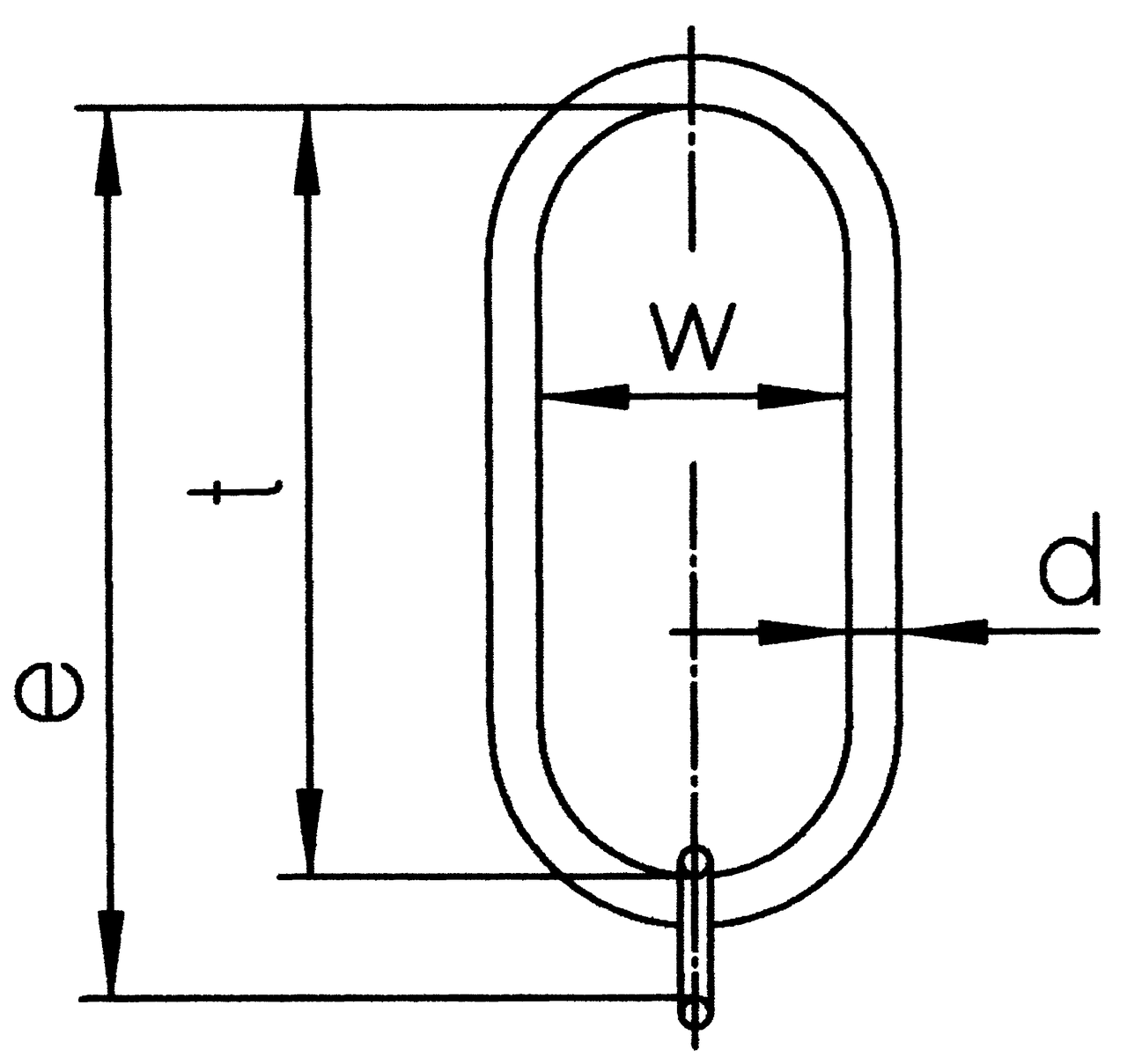

Part Code Code WLL
ton
W
mm
For chain gr 10 √ė 1 leg
mm
Usable with acrane hook DIN 15401 No. up to D
mm
e
mm
t
mm
CAD
11.0213303 GL/S 1x6/7/8 2.5 180 6-7-8 25 22 394 340
11.0270058 GL/S 1x10 4 180 10 25 27 410 340
11.0270061 GL/S 1x13* 6.7 180 13 25 27 340 340
11.0270062 GL/S 1x16* 10 180 16 25 33 340 340
11.0270063 GL/S 1x19/22* 19 180 19-22 25 40 340 340
* Without intermediate link

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
