General: The eyes can be loaded with working load limit in all directions. All the eyes are pivoted to avoid breakage in the eyes, which also make it possible to fold it aside when it is not used.

  • Material: Eye of alloy steel grade 8. Welding attatchment of steel¬†St 52.
  • Marking: WLL.
  • Finish: Painted.
  • Note: The surface that the lifting eyes shall be attatched to shall be flat and tolerate the load it is going to be exposed to.
  • Safety factor: 4:1.
teile_aps_lom2_225mm
aps_2m_micke_lom_225mm
Select a row from the table below, then click the add to quote button

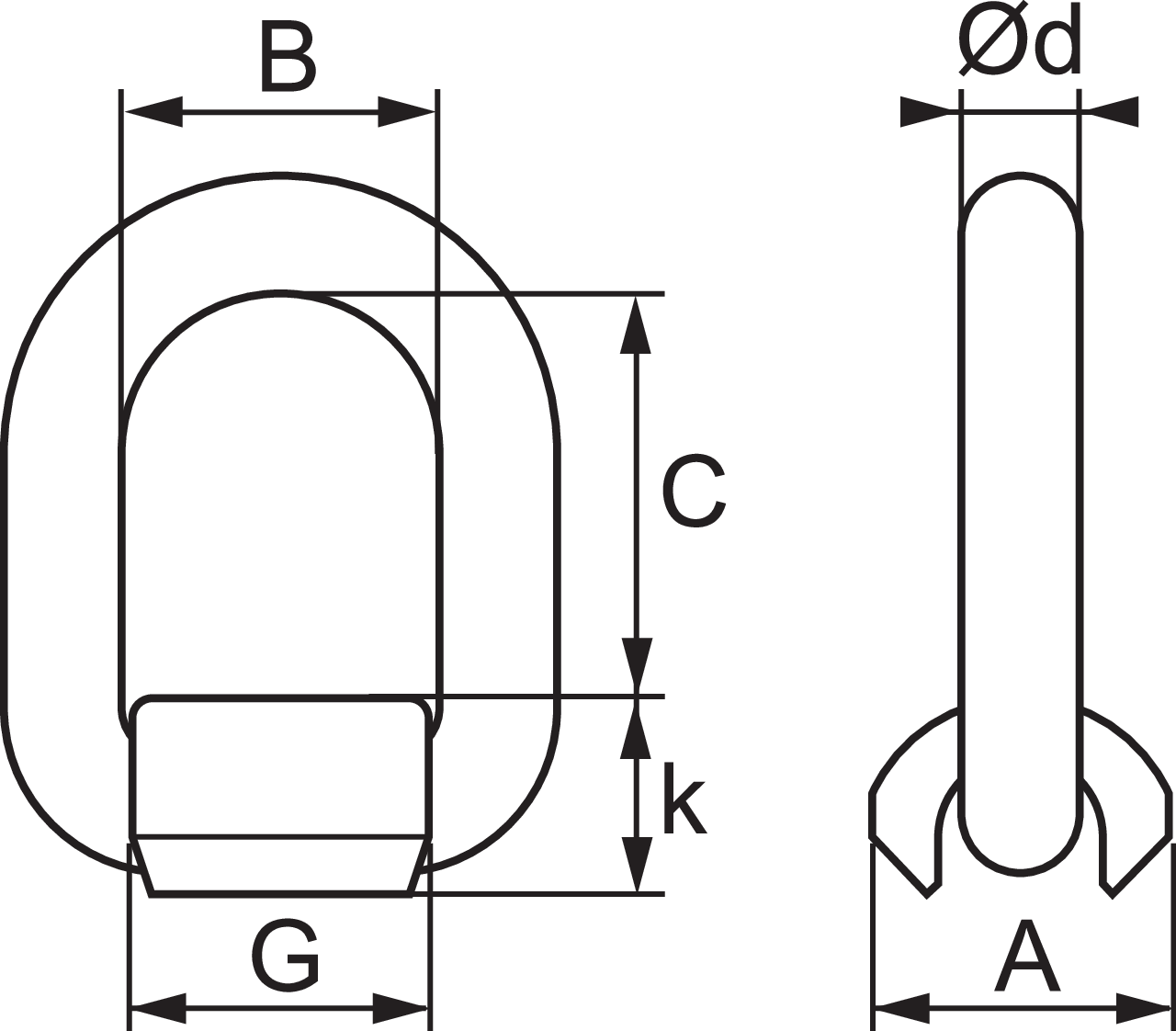

Part Code Code WLL
ton
A
mm
B
mm
C
mm
G
mm
d
mm
k
mm
Weight
kg
CAD
11.410381701000 TAPS-1 1 35 38 42 32 13 25 0.32
11.410381702000 TAPS-2 2 37 40 42 34 13 26 0.33
11.410381703000 TAPS-3 3 49 56 54 50 18 36 0.84
11.410381705000 TAPS-5 5 60 67 63 60 22 46 1.6
11.410381708000 TAPS-8 8 75 80 68 68 26 54 2.6
11.410380415000 TAPS-15 15 90 125 120 100 30 60 5.4

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
  WLL (ton)

TAPS-1 1.12 1.6 1.5
TAPS-2 2 3 2.8
TAPS-3 3.15 4.75 4.25
TAPS-5 5.3 8 7.1
TAPS-8 8 11.8 11.2
TAPS-15 15 22.4 21.2
