Automatic, remote controlled and battery powered hook.
Operating cycles: approx. 8.000.
Protection class: IP65.

    • Safety factor: 4:1.
    pewag levo hook

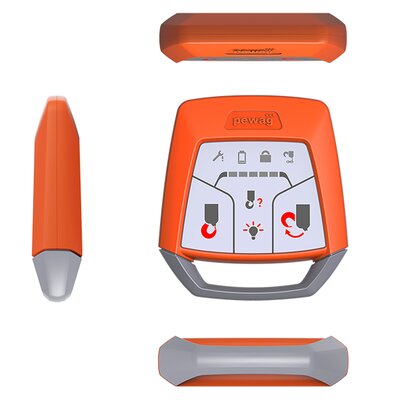

    Pewag-Remote-007

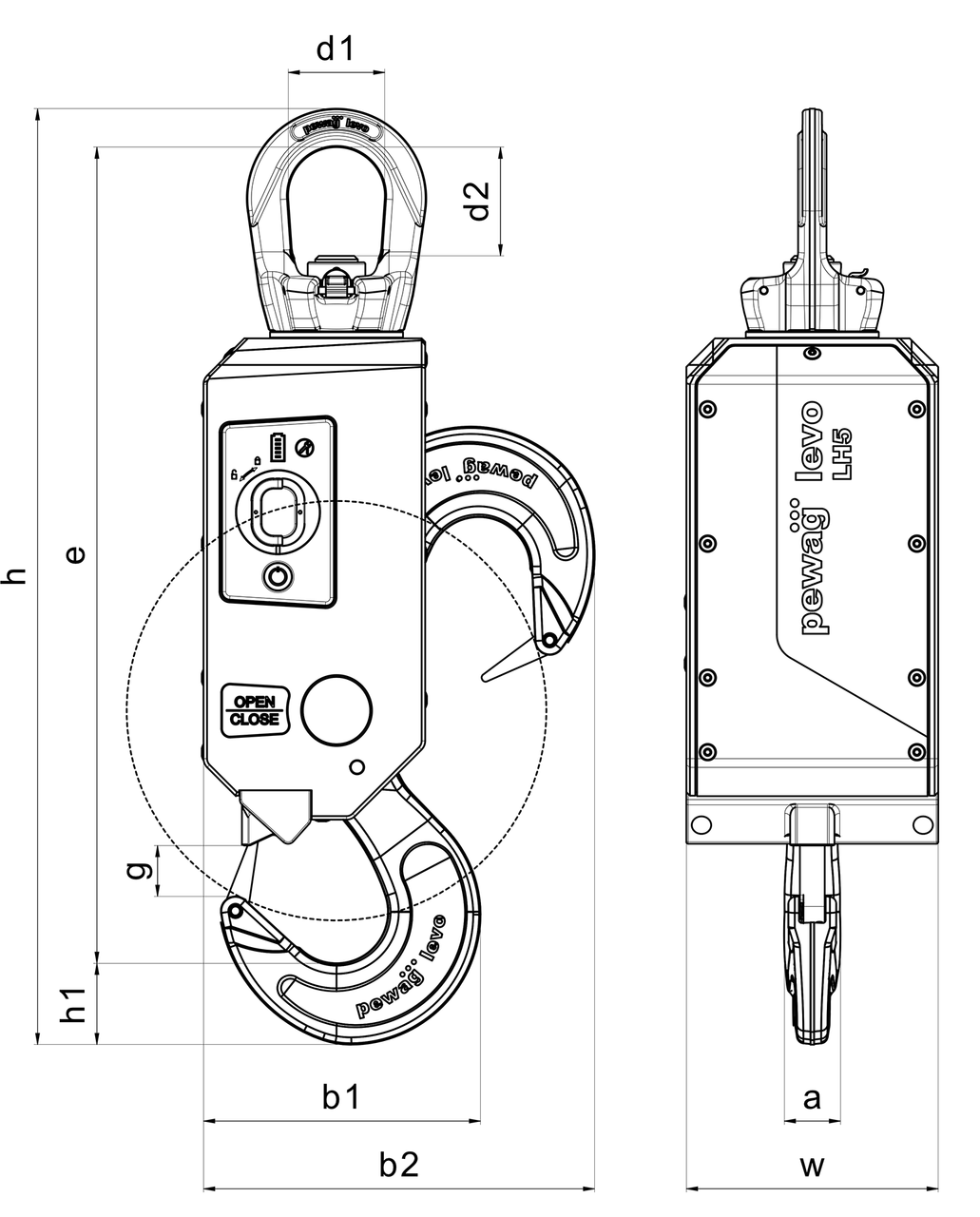

    Levo hook_dwg.
    Select a row from the table below, then click the add to quote button
    Code WLL
    ton
    G
    mm
    w
    mm
    e
    mm
    A
    mm
    B1
    mm
    B2
    mm
    D1
    mm
    D2
    mm
    h
    mm
    h1
    mm
    Weight
    kg
    CAD
    LH5 5 29 142 460 32 156 220 54 61 528 46 20 -

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
