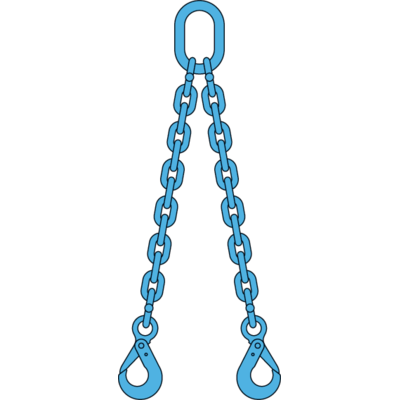

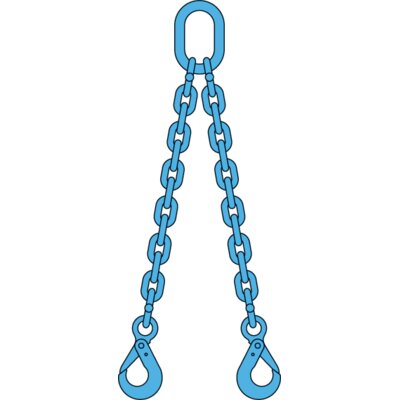

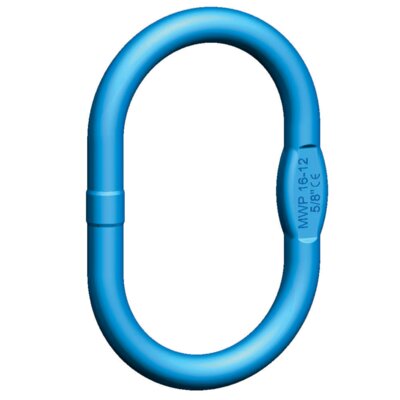

Design: Master link in one end and safety hook - clevis in each leg.

Dimension: Ø 7-13 mm.

  • Material: Alloy steel grade 12.
  • Marking: According to standard
  • Standard: EN 818-4
  • Note: Hooks with eye and link will be used for chain diameter 19-22 mm.
  • Safety factor: 4:1
  • Grade: 12
Safety Hook
Select a row from the table below, then click the add to quote button
Part Code WLL
11.92CSY27607 3,35 -
11.92CSY27608 4,25 -
11.92CSY27610 7,1 -
11.92CSY27613 11,2 -

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address
