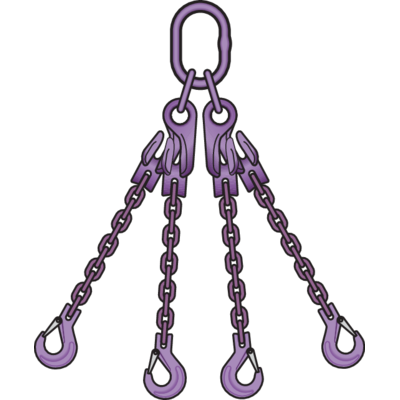

Design: Chain sling with master link and shortening hooks on one end and clevis load hook on the other end of each leg.
From ø19 up to 26mm chain fitted with other type shortening hook and ø 26 mm chain is fitted with an eye hook. Other combinations possible on demand.

Dimension: Ø 6–26 mm.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to 200°C (up to 380° possible on demand)
  • Standard: EN 818-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10
kwb_klx-468_225mm_clevis
kwb_klx-468_225mm_clevis_ends
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
11.91CSX46806XXX 3
11.91CSX46807XXX 4
11.91CSX46808XXX 5,3
11.91CSX46810XXX 8
11.91CSX46813XXX 14
11.91CSX46816XXX 21,2

XXX= the length in three digits (1 m = 010, 1,5 m = 015)
