Steel Wire Rope POLYASS

  • Ordinary right hand lay
  • Ordinary left hand lay
  • Bright
  • Galvanized
  • Not to be used with swivel

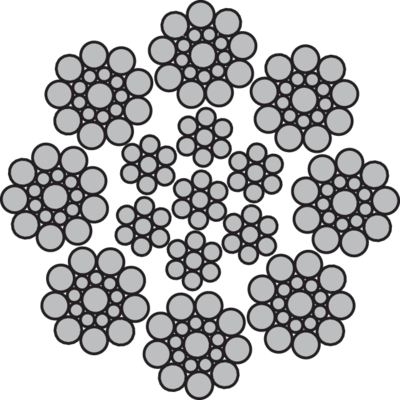

  • Rope construction: 8 strands with steel wire core.
  • Marking: According to standard
  • Standard: EN 12385-4
  • Note: ISO 4309 Rope Category No: 6-26mm RCN 04
  • Fill factor: 0.58
  • Winch rope Wire for winches
  • Overhead cranes For the use with overhead crane
  • Tower crane Wire for tower crane
Polyass[new]_225mm
polyass
Polyass[new]_225mm
polyass
Select a row from the table below, then click the add to quote button
Part Code Rope diameter Steel Area
mm²		 Min. breaking force
kN
1960 N/mm²		 Min. breaking force
kN
1770 N/mm²		 Weight
01.G10POL060G0 6 16,5 25,1 15
01.B10POL065E1 6,5 19,3 26,6 17
01.B10POL075G 7,5 25,7 39,2 23
Other dimensions and tensile strengths on request.
