Steel wire rope - 6xK36WS-IWRC Compacted

  • Ordinary right hand lay
  • Ordinary left hand lay
  • Galvanized
  • Bright
  • Compacted strands
  • Not to be used with swivel

ISO 4309 Rope Category No: 10-40mm RCN.09

  • Rope construction: 6xK36WS-IWRC
  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.68
  • Winch rope Wire for winches
  • Tower crane Wire for tower crane
  • Container crane For use with container crane
  • Mobile port crane Wire for mobile port crane
  • Offshore crane Wire for offshore crane
  • Loading crane Wire for loading crane
  • Crawler crane Wire for use in crawler crane
  • Piling crane Wire for piling crane
  • Overhead cranes For the use with overhead crane

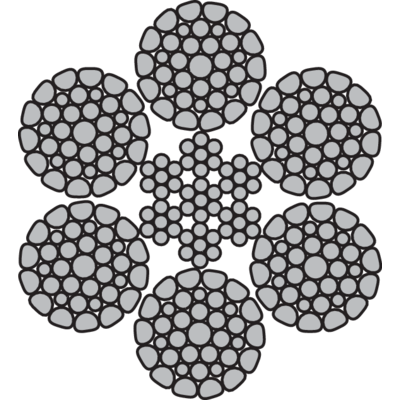

Dyform 6[new]_225mm

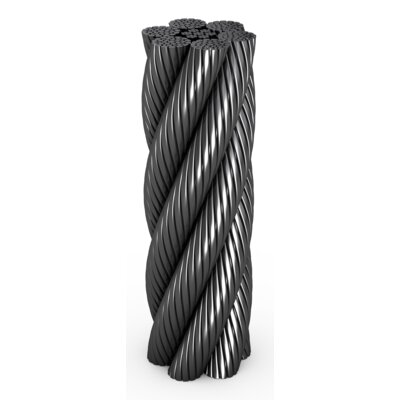

6x36 IWRC - 265tr_comp
Dyform 6[new]_225mm
6x36 IWRC - 265tr_comp
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm		 Steel Area
mm²		 Min. breaking force
kN
1960 N/mm²		 Min. breaking force
kN
2160 N/mm²		 Weight
kg/100m
01.B12265100G 10 50,3 84,2 89,6 45
01.B12265120G 12 72,5 118 126 65
01.B12265130G 13 85 138 147 76
01.B12265140G 14 96,6 169 179 89
01.B12265160G 16 129 210 224 116
01.B12265180G 18 163 266 283 147
01.B12265190G 19 182 299 319 164
01.B12265200G 20 201 328 349 182
01.B12265220G 22 244 397 424 220
01.B12265240G 24 290 473 504 262
01.B12265250G 25 315 513 547 284
01.B12265260G 26 340 555 592 307
01.B12265280G 28 395 643 686 356
01.B12265300G 30 453 739 788 409
01.B12265320G 32 515 840 897 465
01.B12265340G 34 582 949 1 010 525
01.B12265350G 35 616 1 010 1 069 557
01.B12265360G 36 652 1 069 1 138 589
01.B12265380G 38 727 1 187 1 265 656
01.B12265400G 40 805 1 314 1 402 727
Other dimensions on request.
