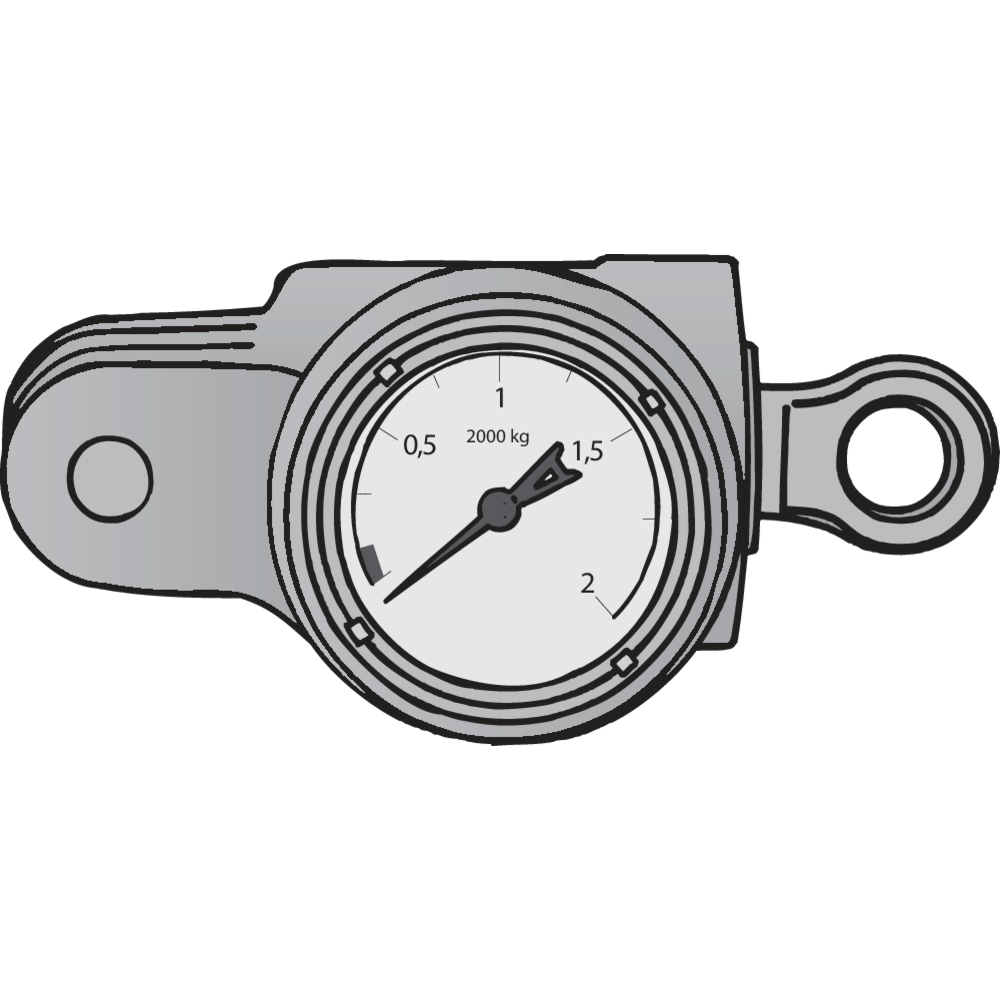

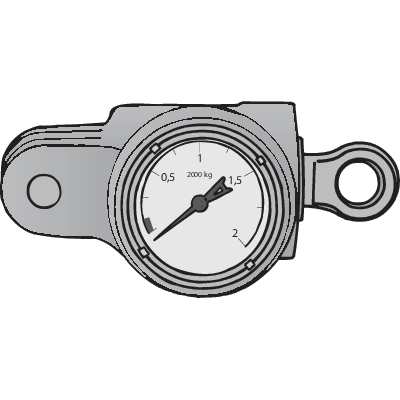

General: Light and compact, fixed constructed gauges for measuring cable tension loads and tautness.
Loadindicator
Loadindicator_measure
Select a row from the table below, then click the add to quote button

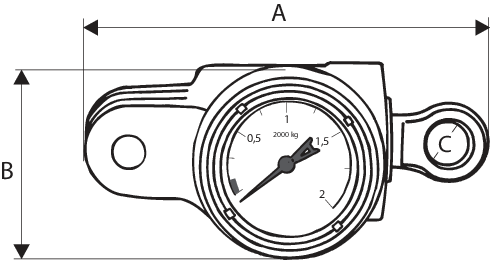

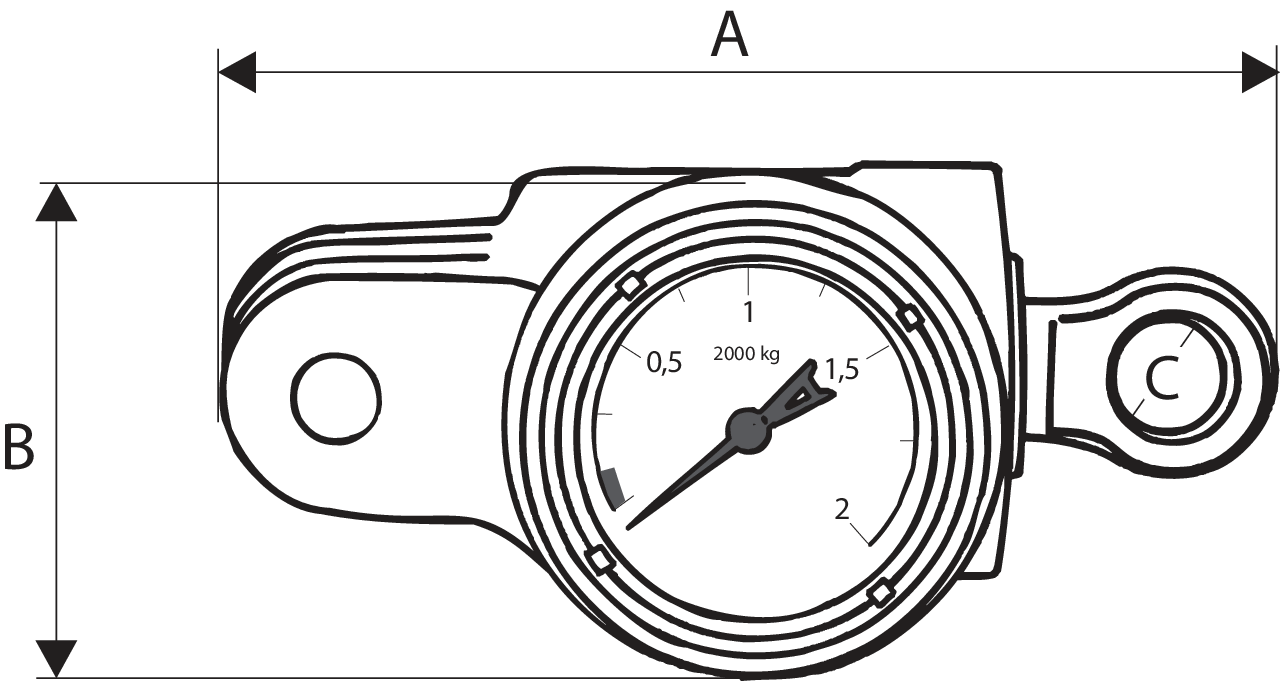

Part Code Code WLL
ton
Graduation
kg
A
mm
B
mm
C
mm
Weight
kg
02.99KMA5 KMA05 0,5 10 110 65 11 0,7
02.99KMA10 KMA10 1 20 135 65 16 0,8
02.99KMA20 KMA20 2 50 135 65 16 1,2
02.99KMA30 KMA30 3 50 150 80 28 2
02.99KMA50 KMA50 5 100 260 95 28 3
