General: Intended for attaching of wire rope where switching often occur, e.g. blocks of mobilecranes, or to be able to adjust the length of the wire rope. See recommended assembly to get correct results.
Design: Bended and welded house made of plate. Wedge made of plate with milled grove and symmetrical shaped to avoid error assemblies. Turned bolt with head, low nut and split cotter. The wedge sockets is delivered complete. Note that some wedge houses fit to different sizes of wedges.

Marking house and wedge: Dimension area.
Proof: Batch proof 2 x WLL.

  • Material: House, wedge and bolt by high-tensile construction steel.
  • Finish: Electro-zink plated
  • Note: To elevators and mines we recommend other designs.
  • Safety factor: 5:1
3001a_micke_225mm

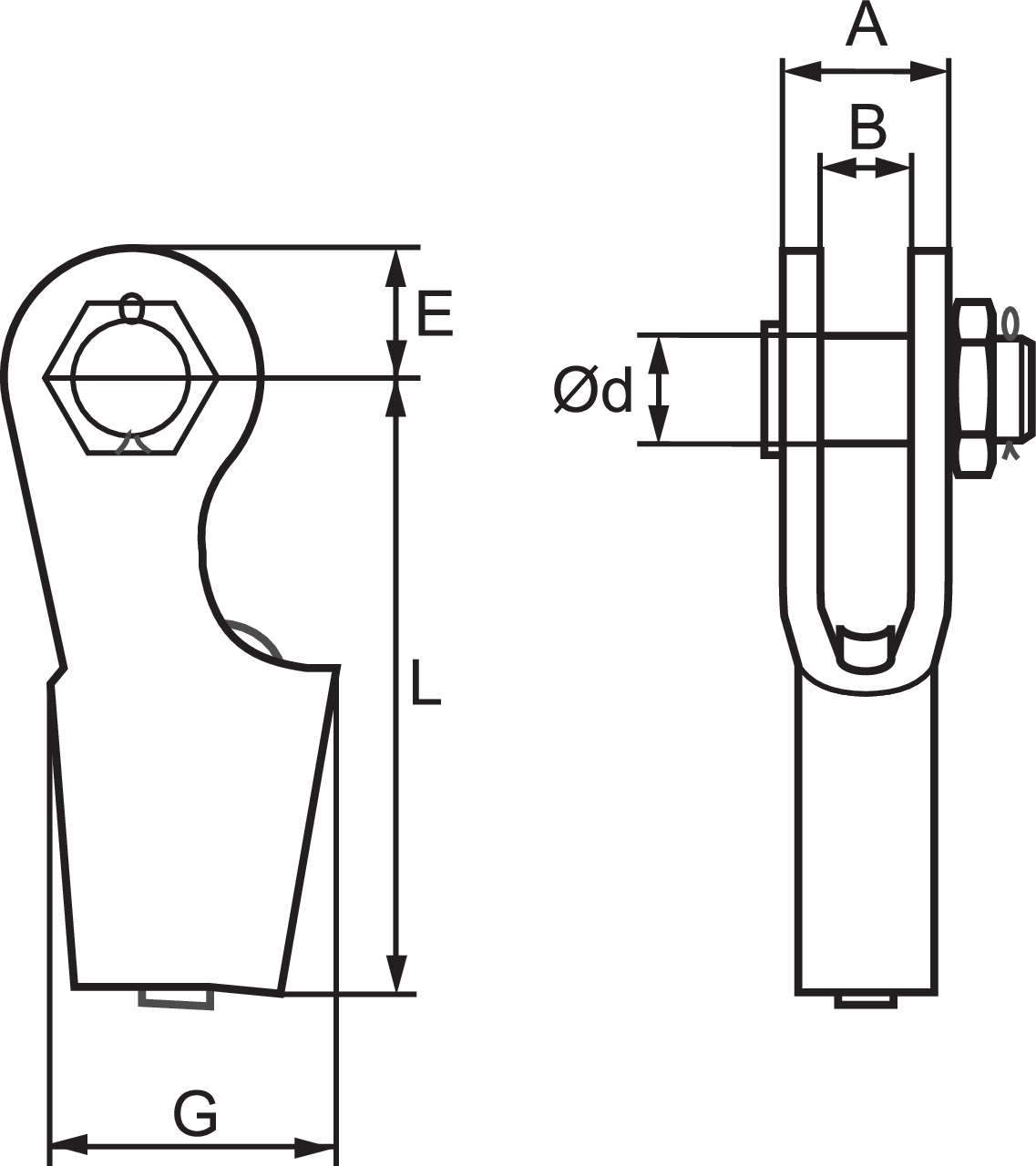

3001am_micke2_225mm
Select a row from the table below, then click the add to quote button
Part Code Code Rope diameter
mm
WLL
ton
MBL
ton
A
mm
B
mm
E
mm
G
mm
L
mm
D
mm
Weight
kg
10.20300110 3001B 10 2 10 30 16 29 70 145 27,5 1,2
10.20300112 3001C 11-12 2 10 30 16 29 70 145 27,5 1,2
10.20300109 3001A 8-9 2 10 30 16 29 70 145 27,5 1,3
10.20300417 3004B 15-17 5 25 60 34 44 96 216 31,5 4,4
10.20300414 3004A 13-14 5 25 60 34 44 96 216 31,5 4,6
10.20300519 3005A 18-19 6 30 66 40 50 110 245 39,5 6,2
10.20300623 3006A 20-23 9 45 72 40 50 120 280 39,5 8,7
10.20300828 3007A 24-28 12 60 75 42 67 140 327 43,5 13
10.20300836 3008B 33-36 20 100 104 60 75 245 555 65 39
10.20300832 3008A 29-32 20 100 104 60 75 245 555 65 40
10.20300844 3009B 41-44 27 135 124 80 95 270 675 79 63
10.20300840 3009A 37-40 27 135 124 80 95 270 675 79 65
Other dimensions and designs on request.
