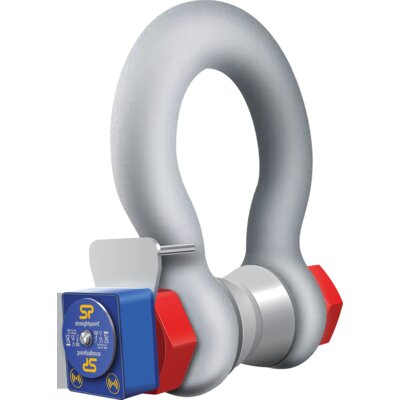

General: Wireless loadshackle with low headroom and a load-centering bobbin.
Battery type/life: Loadcell 4 x AA Alkaline/Load cell 1200 hours continuous.
Accuracy: ±1% of applied load.
Frequency: 2.4 GHz.
System range: 700 m.
Data rate: 3 updates per second.
Protection: IP67.

  • Temperature range: -10°C up to +50°C.
  • Note: Safety factor when used with a load bobbin.
  • Safety factor: 5:1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

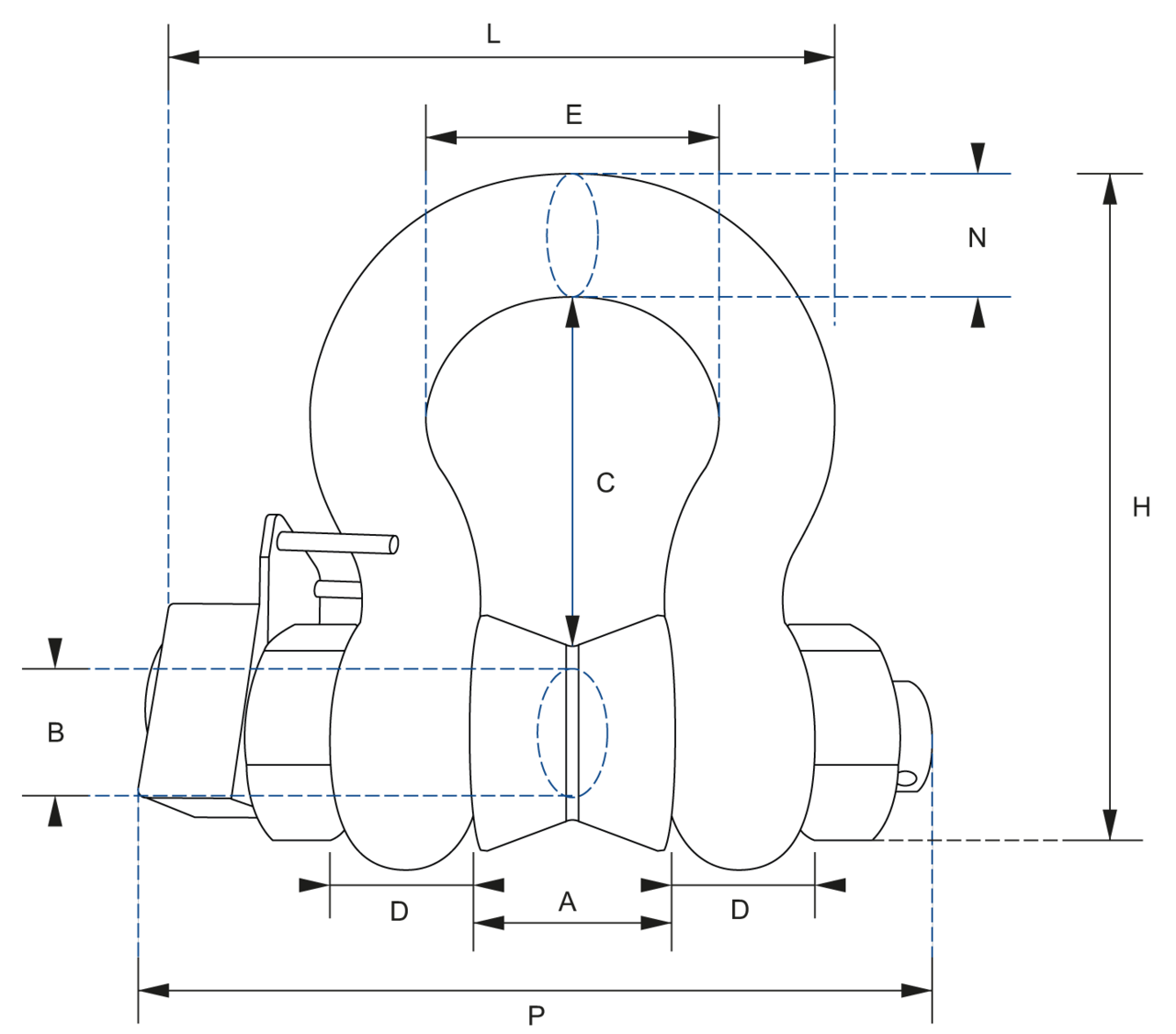

Part Code Code WLL
ton
Resolution
T
A
mm
ØB C
mm
D
mm
E
mm
H
mm
L
mm
N
mm
P
mm
Weight
kg
CAD
16.50WLS3,25T WLS3,25T 3.25 5 26.9 19.1 56.9 16 42.9 106 127.1 17.5 143 2.8
16.50WLS6,5T WLS6,5T 6.5 5 36.6 25.4 79.7 22.4 58 148 156.5 24.6 173 3.2
16.50WLS12T WLS12T 12 10 51.5 35.1 113 31.8 82.5 210 196 35.1 218 8
16.50WLS25T WLS25T 25 20 73 51 170 44.5 127 313 281 57 293 18
16.50WLS55T WLS55T 55 50 82.5 57 189.5 51 164 348 306 61 317 25
16.50WLS85T WLS85T 85 50 105 70 253 66.5 184 453 368 79 394 45
16.50WLS120T WLS120T 120 100 127 82.5 319.5 76 200 546 408 92 441 85
16.50WLS200T WLS200T 200 200 180 125 483 120 290 810 580 120 565 254
16.50WLS300T WLS300T 300 500 205 150 576 130 305 950 615 130 615 374
16.50WLS400T WLS400T 400 500 230 175 650 165 325 1,100 705 165 711 614

Accuracy: +/- 1% full scale.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
