Turnbuckle TR Series Jaw - Jaw

Home / Products / Lifting equipment / COMPONENTS / Turnbuckles / Turnbuckle TR Series Jaw - Jaw

General:
Closed body Turnbuckles jaw/jaw with trapezoid thread standard supplied with lock nuts.

Features:
- Standard painted blue, but can be supplied in any colour or galvanised.
- Available in all combinations of eyes, stud eyes and welding ends.
- Lock plates or special locking devices possible.
- Can be supplied with turning wheel or rachet.
- Other sizes possible.

Temperature range: -40°C t/m +110° C at 100% capacity rating. Higher temperature possible with reduction of WLL.
Warning: Straight or in-line pull only.

Safety factor: 5:1

Select a row from the table below, then click the add to quote button

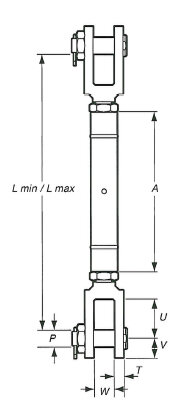

Part Code	WLL ton	Take up mm	Thread trap.	L min. mm	L max. mm	A mm	P mm	U mm	V mm	W mm	T mm	Weight kg
11.50410016011	1.6	167	22 X 5	398	565	240	20	55	22.5	23	11	3
11.50410020011	2	181	24 X 5	422	603	260	22	58	25	26	12	4
11.50410025011	2.5	215	28 X 5	512	727	280	24	73	27.5	30	12	6
11.50410031011	3.1	225	30 X 6	543	768	300	27	80	30	32	15	8
11.50410040011	4	232	32 X 6	584	816	320	30	86	32.5	35	15	10
11.50410050011	5	242	36 X 6	612	854	340	36	93	37.5	40	20	15
11.50410063011	6.3	270	44 X 7	701	971	380	39	108	42.5	45	20	20
11.50410080011	8	296	48 X 8	755	1,051	420	45	112	47.5	50	25	28
11.50410100011	10	306	52 X 8	798	1,104	460	48	115	55	60	25	35
11.50410126011	12.6	352	55 X 9	862	1,214	500	52	122	60	65	30	47
11.50410160011	16	366	65 X 10	944	1,310	540	60	130	65	70	30	62
11.50410200011	20	380	70 X 10	1,042	1,422	580	68	145	70	75	35	85
11.50410250011	25	402	75 X 10	1,126	1,528	620	72	160	75	80	35	100
11.50410315011	31.5	438	80 X 10	1,192	1,630	660	80	170	85	90	40	130
11.50410400011	40	464	90 X 10	1,280	1,744	695	90	190	92	100	45	175
11.50410500011	50	520	100 x 10	1,390	1,910	770	100	205	105	110	50	236
11.50410630011	63	564	110 X 10	1,526	2,090	855	110	220	112	120	60	325
11.50410800011	80	630	120 X 10	1,653	2,283	920	125	235	127	140	70	452
11.50411000011	100	720	130 X 10	1,748	2,468	995	140	250	142	156	70	577
11.50411250011	125	752	140 X 10	1,900	2,652	1,070	160	270	162	176	80	811
11.50411600011	160	880	160 X 10	2,090	2,970	1,220	180	290	182	200	90	1,120

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
