Clamp for horizontal lifting and transporting of tubes, pipes, tube bundles, rolls and other solid round materials. The clamp is locked in the open position . To perform lifting, the operator must activate the handle and hold it up while the force on the lifting eye is going upwards . When laying down the load, the clamp automatically locks itself open.
- Lightweight design and easy to use.
- Tough quality body.
- Can be delivered with protection to avoid damaging of the load.
- Higher WLL or jaw openings available upon request.
- Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
- Temperature range: - 40°C to + 100°C.
- Standard: EN 13155

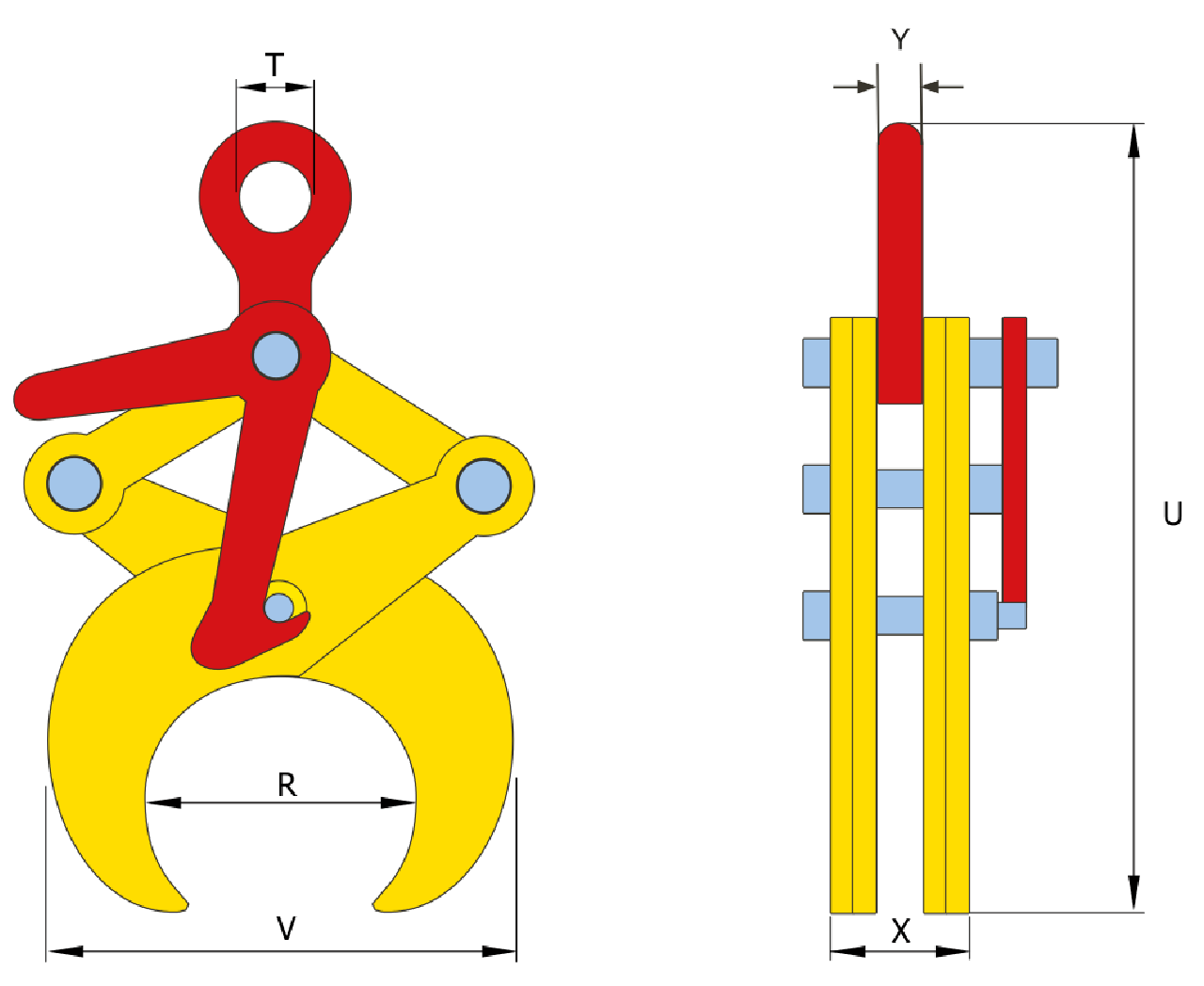

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
