Liftket

The LIFTKET product portfolio offers you standardized hoists that can be adjusted to your requirements in a modular way, as well as highly specialized solutions. Larger lifting and operating heights are just as viable as deviating voltages and special solutions of any kind.

Features:

  • Power supply 230 V, 1 phase, 50 Hz
  • From 125 kg to 2.000 kg we lift everything that moves you
  • FEM ratings from Fem 1Bm to 4m (ISO M3 to M7)
  • Protection class IP55, insulation class F
  • Galvanized load chain to DIN 818-7 quality class DAT
  • A wide range of options can be selected as standard
  • Optional one or two lifting speeds from 2 to 32 m/min.
  • With heavy-duty end position switch-off as standard (at 24VAC)
  • Up to 200 meters high safely and anywhere
  • Patented safety-brake-clutch system
  • Modular hoist design
  • Simply and cost effective maintenance and repair
  • A unique ID makes it possible to trace exactly when a particular electric chain hoist was built by whom and with which materials – even after 10 years

Trolleys/Boogies: Manual or electric trolleys in various designs for each steel section girder.

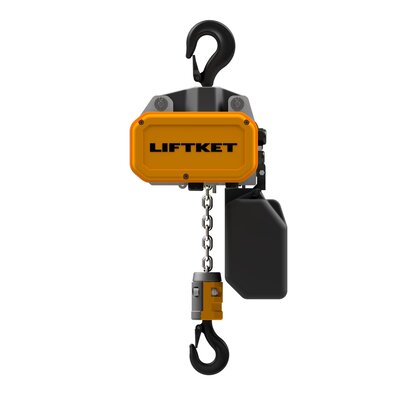

Also available for the food industry:

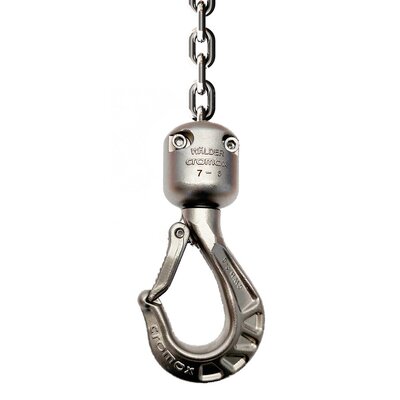

The models of the STAR LIFTKET Foodline are equipped with a stainless steel load chain according to AISI 316 and a safety factor of min. 5:1. In addition, the NSF-H1 lubricant approved for the food industry is standard equipment in the gearbox. Optionally, the chain hoists can be ordered with stainless steel load hooks

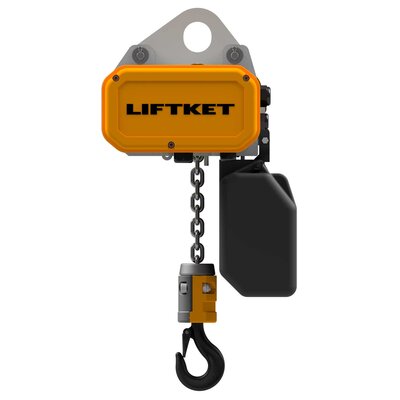

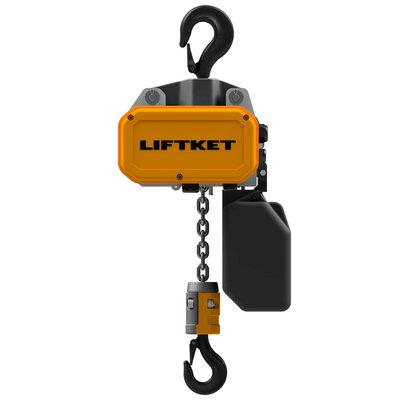

  • Note: Standard version delivered with lifting eye (connection between crane and trolley). Alternatively, comes with suspension hook. Standard stock hoist with 6 m lifting height.
Select a row from the table below, then click the add to quote button

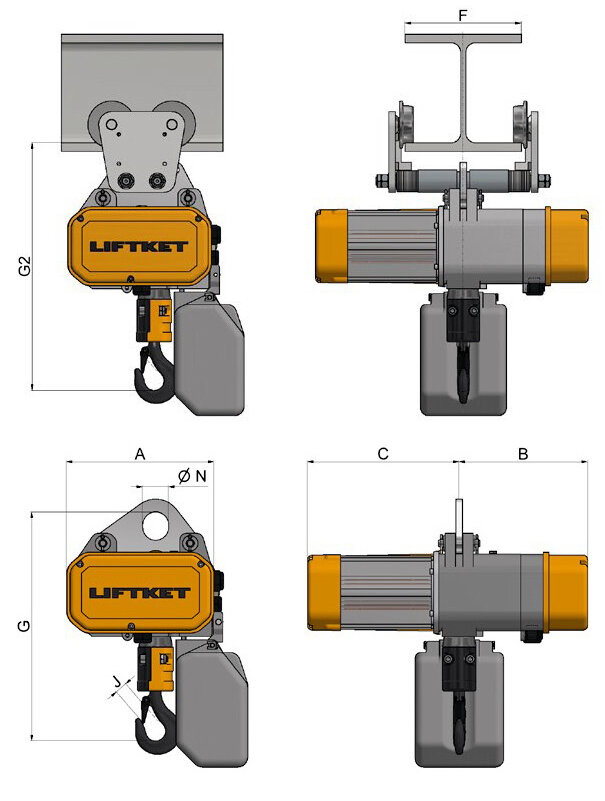

Part Code WLL
ton
Chain falls Duty rating % ED Class ISO/FEM Lifting speed at 50 Hz
m/min
Power of lifting motor at 50 Hz kW Load chain
mm
A
mm
B
mm
C
mm
G
mm
G2
mm
øN
mm
J
mm
Weight
kg
13.05ST012518-03 0,125 1 25 M3/1Bm 8 0,35 5,2x15 212 192 220 380 406 25 20 18
13.05ST025018-03 0,25 1 25 M3/1Bm 8 0,35 5,2x15 212 192 220 380 406 25 20 18
13.05ST050024-03 0,5 2 25 M3/1Bm 4 0,35 5,2x15 212 192 220 428 454 25 22 21
13.05ST050018-03 0,5 1 25 M3/1Bm 8 0,7 5,2x15 266 232 274 388 449 35 20 33
13.05ST100024-03 1 2 25 M3/1Bm 4 0,7 5,2x15 266 232 274 436 497 35 22 36
13.05ST100016-03 1 1 25 M3/1Bm 6 1,1 7,2x21 266 232 274 413 460 35 22 36
13.05ST200023-03 2 2 25 M3/1Bm 3 1,1 7,2x21 266 232 274 514 561 35 28 41

Part Code = last two digits indicates the lifting height: 03 = 3 m lifting height
Weight with 3 m lift chain
