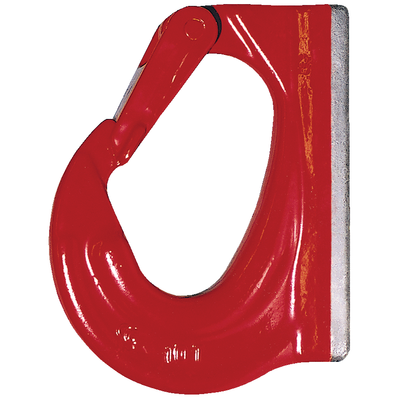

Crosby

Features:

  • Wide range of sizes available: 1-10 metric ton capacity.
  • Designed for attachment to mobile lifting equipment to provide a pick point for easy sling attachment.
  • Large weld pad.
  • Heavy duty latch interlocks with the hook tip. Replacement latches available.
  • Detailed installation and application instructions included with each hook.
  • Material: Forged - Alloy steel
  • Warning: The hook part may not be heat-treated.
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
B
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
S
mm
Weight
kg
11.281029114 2 23 82 91 36 25 34 115 21 0,84
11.281029123 3 29 117 105 36 31 36 131 24 1,18
11.281029141 5 34 161 133 47 45 45 173 29 2,55
11.281029150 8 35 166 135 47 52 52 178 39 3,3
11.281029269 10 49 205 168 47 57 57 222 39 5
