KWB

General: Specially rugged profile chain in grade 12 for lifting.




  • Material: Alloy steel grade 12
  • Marking: Every link is marked with manufactor ID and grade.
  • Temperature range: -40ºC to 200ºC
  • Finish: Painted.
  • Note: Not to be heat-treated.
  • Grade: 12

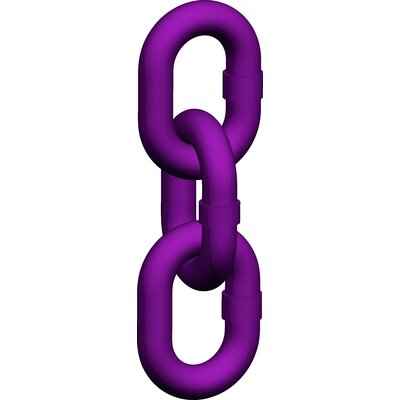

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

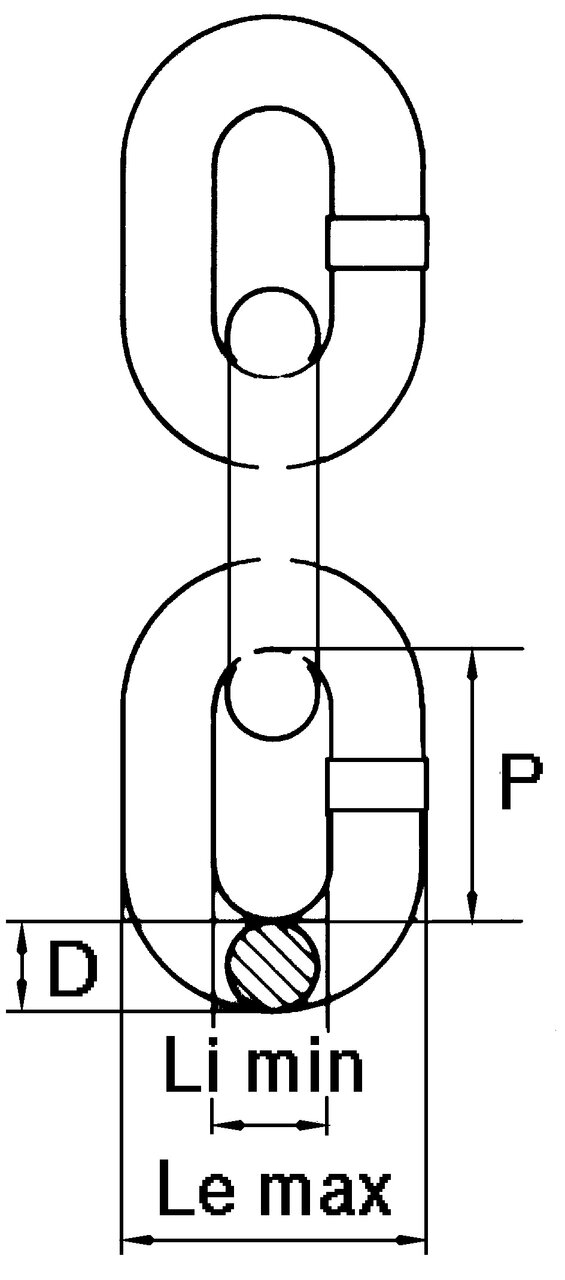

Part Code Chain diameter
mm
WLL
ton
Min. breaking force
kN
L min.
mm
Chain inch Pitch
mm
Length - max
mm
Weight
kg/m
11.6655421 7 2,36 92,6 9,8 9/32 21 26 1,33
11.6655422 8 3 118 11 6/16 24 30,5 1,69
11.6655423 10 5 196 14,3 3/8 30 38 2,66
11.6655433 13 8 319 18 1/2 39 48,5 4,43
11.6655452 16 12,2 479 21,5 5/8 48 59 6,73
Safety factor
1-leg chains

2-leg chains



3- and 4-leg chains

4
1-part chainsling 1 strang ketten 2 2-part chainsling

2 strang ketten 2

3- and 4-part chain plate lift

angle of inclination
-
-
up to 45°
45°-60°
up to 45°
45°-60°
up to 45°
45°-60°
load factor
1
0.8
1.4
1
1.12
0.8
2.1
1.5
Ø
load capacity [kg]







7
2,360
1,900
3,350
2,360
2,650
1,900
5,000
3,550
8
3,000
2,360
4,250
3,000
3,350
2,360
6,300
4,500
10
5,000
4,000
7,100
5,000
5,600
4,000
10,600
7,500
13
8,000
6,300
11,200
8,000
9,000
6,300
17,000
11,800
16
12,200
9,700
17,000
12,200
13,600
9,700
25,600
18,300
