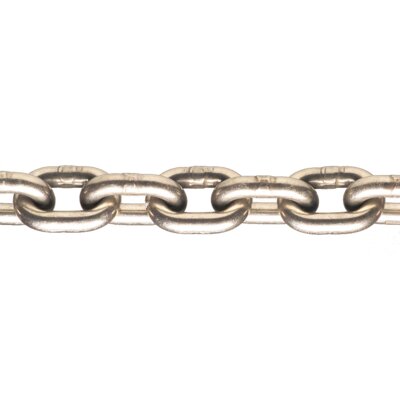

Home / Products / Chains and slings / CHAIN & CHAIN SLINGS / Chains / Chain DIN Stainless- Short Link Grade 2

General: Chain for different applications.

Standard: Dimension acc. to DIN 766.

WARNING! Not for lifting.

Material: AISI 316.

Grade: 2

Select a row from the table below, then click the add to quote button

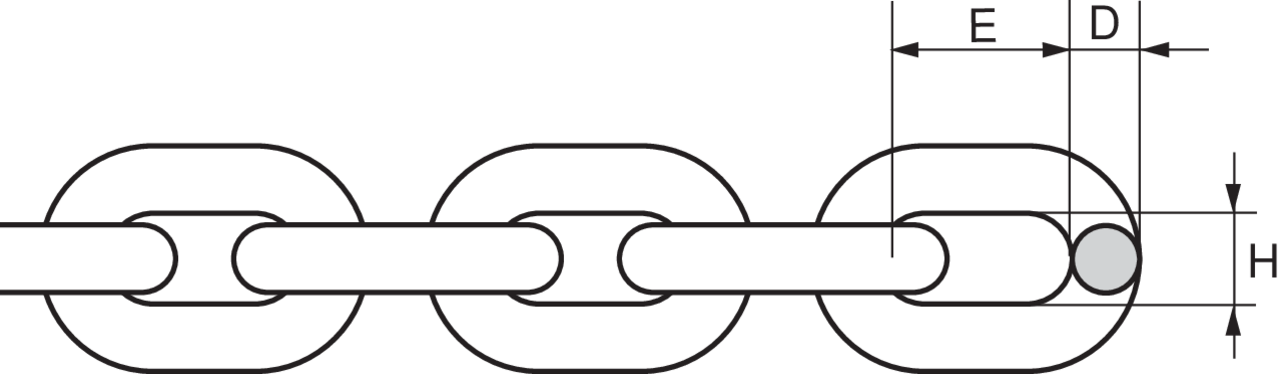

Part Code	Code	Diameter mm	Breaking force kN	Breaking force kP	D mm	E mm	H mm	Weight kg/m
11.60766040S	KLR-4-D2	4	5,9	600	4	16	6	0.32
11.60766050S	KLR-5-D2	5	9,8	1,000	5	18,5	7	0.5
11.60766060S	KLR-6-D2	6	13,7	1,400	6	18,5	8	0.75
11.60766080S	KLR-8-D2	8	24,5	2,500	8	24	10	1.4
11.60766100S	KLR-10-D2	10	39,2	4,000	10	28	14	2.3
