• Not for lifting

Chain for different applications.
Standard: Dimesion acc. to DIN 763.

  • Material: AISI 316.
  • Warning: Not for lifting.
  • Grade: 2

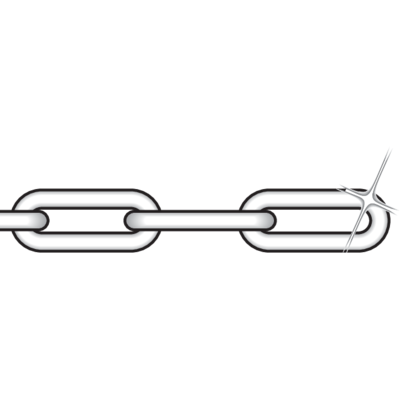

Hlrx_225mm
HLM_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Chain diameter
mm
Min. breaking force
kN
D
mm
E
mm
H
mm
Weight
kg/m
11.60763030S 3 2,8 3 26 6 0,15
11.60763040S 4 5,9 4 32 8 0,27
11.60763060S 6 13,7 6 42 12 0,63
11.60763080S 8 24,5 8 54 16 1,1
11.60763100S 10 39,2 10 66 20 1,8
Other dimensions and breaking force on request.
