General: Chain for different applications.
Standard: DIN 766.
- Material: Grade 2.
- Finish: Zink-platined.
- Warning: Not for lifting.
- Grade: 2
Currently this product cannot be added to an online quote. Please contact us directly for enquires.

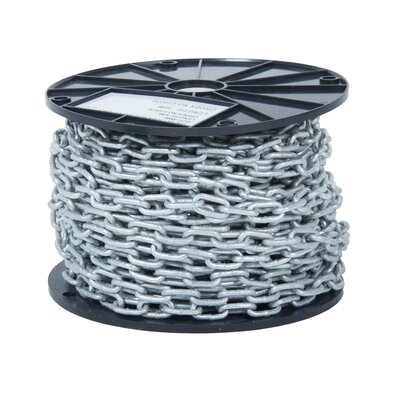

Bobbin
|
Art No
|

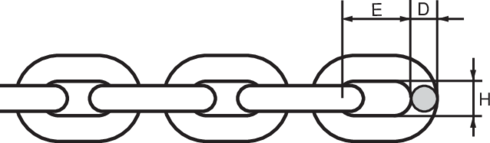

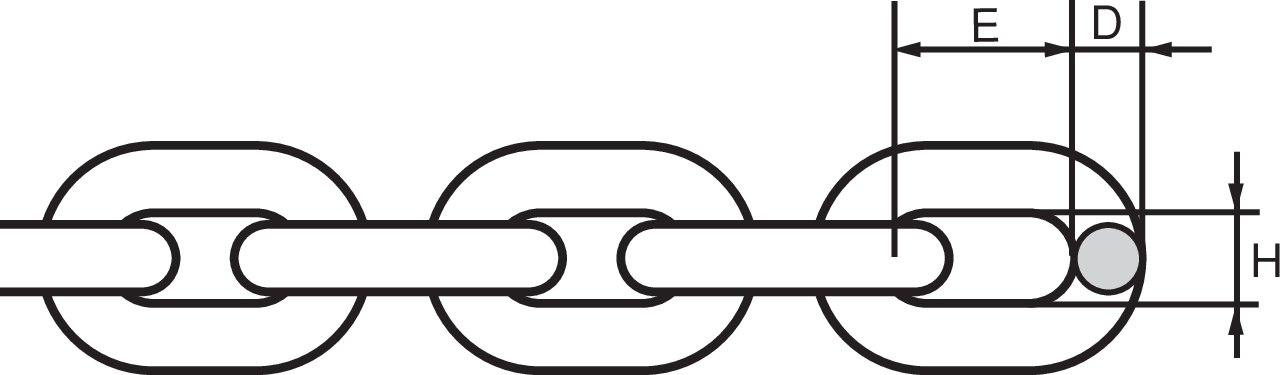

Code | Chain Ø (D) | E | H | Length | Mass |
| mm | ˜ | ˜ | m | kg/m | ||
| 11.60KLZS030.2 | KLZS-3-2 | 3 | 10 | 4,5 | 50 | 0,2 |
| 11.60KLZS040.2 | KLZS-4-2 | 4 | 17 | 7 | 50 | 0,4 |
| 11.601502050GR25 | KLZS-5-2 | 5 | 19 | 8 | 30 | 0,5 |
| 11.601502060GR25 | KLZS-6-2 | 6 | 19 | 8 | 30 | 0,8 |
| 11.60KLZS080.2 | KLZS-8-2 | 8 | 24 | 10 | 15 | 1,4 |
| 11.60KLZS100.2 | KLZS-10-2 | 10 | 28 | 14 | 15 | 2,3 |
