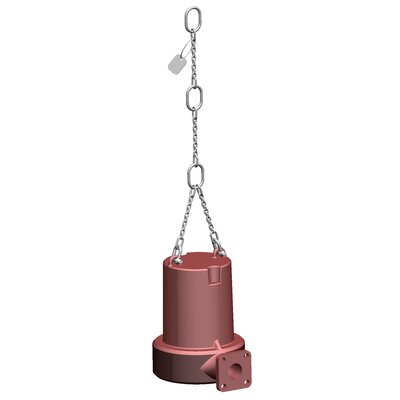

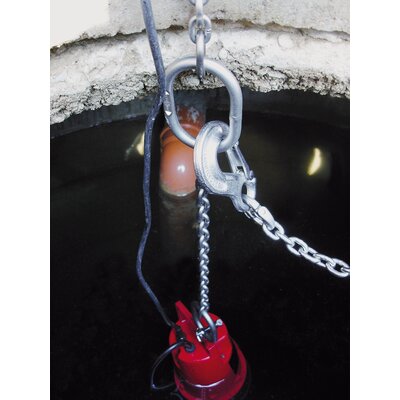

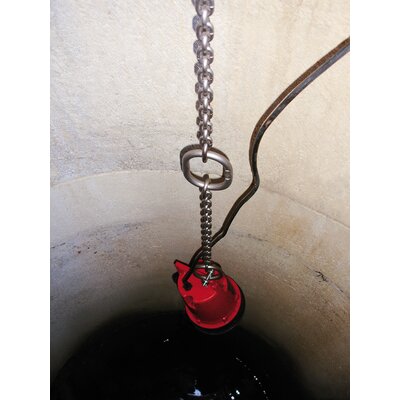

Application for submersible pumps and breathers in the water and waste water area.

  • Material: 1.4404 (AISI 316L), 1.4462 (AISI 318LN).
  • Finish: Bright polished.
  • Safety factor: 4:1
  • Grade: 6
PCWI-Fore
PCWI in use_2
PCWI pic_2
PCWI in use_1
PCWI dwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Master link Transition link Chain type Shackle jaw space
mm
Length of master links/end links
mm
Weight SL* AWI
mm
BWI
mm
CAD
11.6362515 0,32 AWI 6 - WOX 4x12-5 18 60 0,39 6x60x35 - -
11.6387067 0,4 AWI 8 BWI 5 WOX 4x12 18 60 0,43 8x60x35 5x26x13 -
11.6387069 0,56 AWI 8 BWI 7 WOX 5x15 25 60 0,62 8x60x35 7x36x16 -
11.6387071 0,63 AWI 10 BWI 7 WOX 5x15 25 80 0,68 10x80x50 7x36x16 -
11.6387073 0,85 AWI 10 BWI 7 WOX 6x18 25 80 0,9 10x80x50 7x36x16 -
11.6387075 1,25 AWI 13 BWI 9 WOX 7x21 25 110 1,35 13x110x60 9x44x20 -
11.6387077 1,6 AWI 13 BWI 10 WOX 8x24 32 110 1,7 13x110x60 10x44x20 -
11.6387079 2,5 AWI 16 BWI 13 WOX 10x30 41 110 2,6 16x110x60 13x54x25 -
11.6387081 3,5 AWI 18 BWI 16 WOX 13X39 56 135 4,5 18x135x75 16x70x34 -
11.6387082 6,3 AWI 22 BWI 20 WOX 16x48 56 160 8 23x160x90 20x85x40 -
11.6330193 8 AWI 26 BWI 22 WOX 20x60 76 180 21 27x180x100 23x115x50 -
11.6330196 12 AWI 45 BWI 32 WOX 26x78 76 340 43,2 45x340x180 32x150x70 -

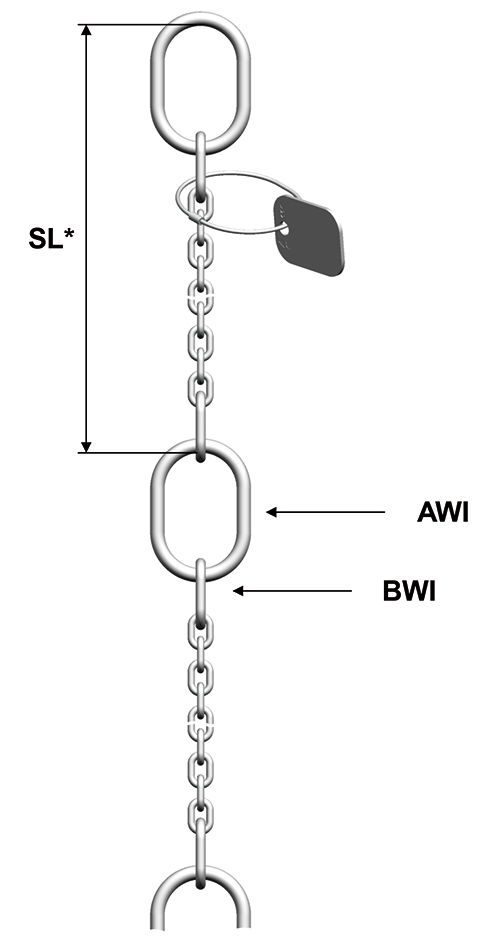

* SL consisting of 1 x AWI, 2 x BWI, WOX chain in standard length. PCWI 4/320 manufactured without transition links BWI.
** made to order.
