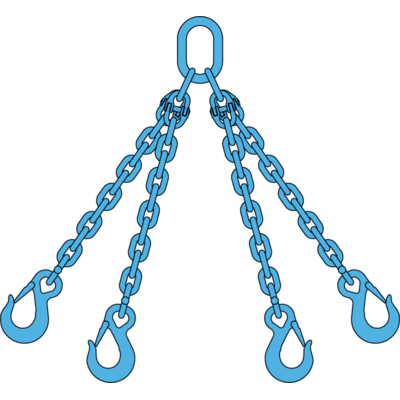

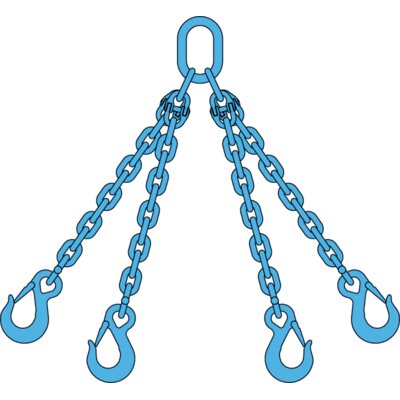

Design: Master link in one end and load hook - clevis in each leg.

Dimension: Ø 7-13 mm.

  • Material: Alloy steel grade 12.
  • Marking: According to standard
  • Standard: EN 818-4
  • Safety factor: 4:1
  • Grade: 12
Load Hook
Select a row from the table below, then click the add to quote button
Part Code WLL
11.92CSY47507 5 -
11.92CSY47508 6,3 -
11.92CSY47510 10,6 -
11.92CSY47512 17 -

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address

Fetching the CAD file...
