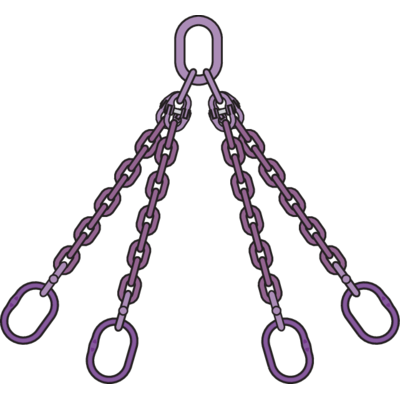

Design: Chain sling with master links on both ends. Other combinations possible on demand.

Dimensions: Ø 6-26 mm. (other dimensions on demand).

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to 200°C (up to 380° possible on demand)
  • Standard: EN 818-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code WLL
11.91CSX48006XXX 3
11.91CSX48007XXX 4
11.91CSX48008XXX 5.3
11.91CSX48010XXX 8
11.91CSX48013XXX 14
11.91CSX48016XXX 21.2
11.91CSX48019XXX 30
11.91CSX48022XXX 40

XXX= the length in three digits (1 m = 010, 1,5 m = 015)

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
