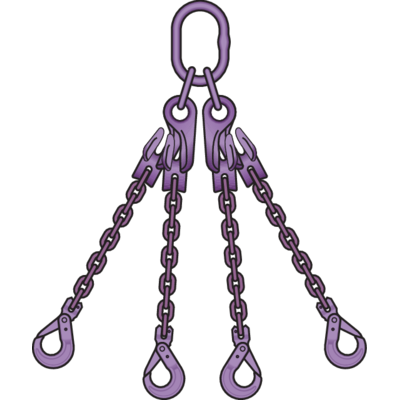

Design: Chain sling with master link and shortening hooks on one end and clevis safety hooks on the other ends.
ø 19 and 22 mm chain are fitted with eye safety hooks and other types shortening hooks. Other combinations possible on demand.

Dimensions: Ø 6–22 mm (other dimensions on demand).

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to 200°C (up to 380° possible on demand)
  • Standard: EN 818-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code WLL
11.91CSX46906XXX 3
11.91CSX46907XXX 4
11.91CSX46908XXX 5,3
11.91CSX46910XXX 8
11.91CSX46913XXX 14
11.91CSX46916XXX 21,2

XXX= the length in three digits (1 m = 010, 1,5 m = 015)
